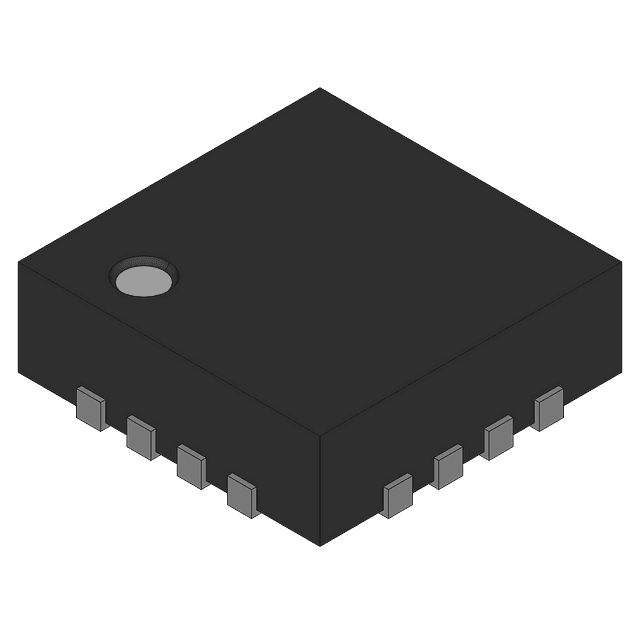

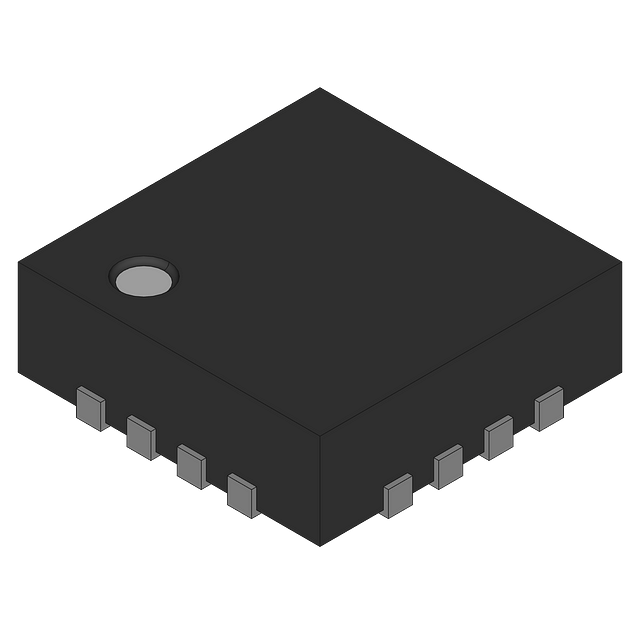

Differential D Flip Flop with CML outputs, operating from 1.71V to 3V. Features negative and positive edge triggering, non-inverting polarity, and a single bit logic function. This surface mount component offers a propagation delay of 200ps and a turn-on delay time of 300ps. Packaged in a 3x3mm QFN EP with 0.5mm pitch, it is halogen and lead-free, RoHS compliant, and operates within a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NB7V52MMNHTBG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN EP |
| Clock Edge Trigger Type | Negative Edge, Positive Edge |
| Halogen Free | Halogen Free |
| Height | 0.87mm |
| Input Type | DIFFERENTIAL |
| Lead Free | Lead Free |
| Length | 3mm |
| Logic Function | D-Type |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3V |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Bits per Element | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Package Quantity | 100 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 200ps |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 300ps |
| Width | 3mm |
| RoHS | Compliant |
