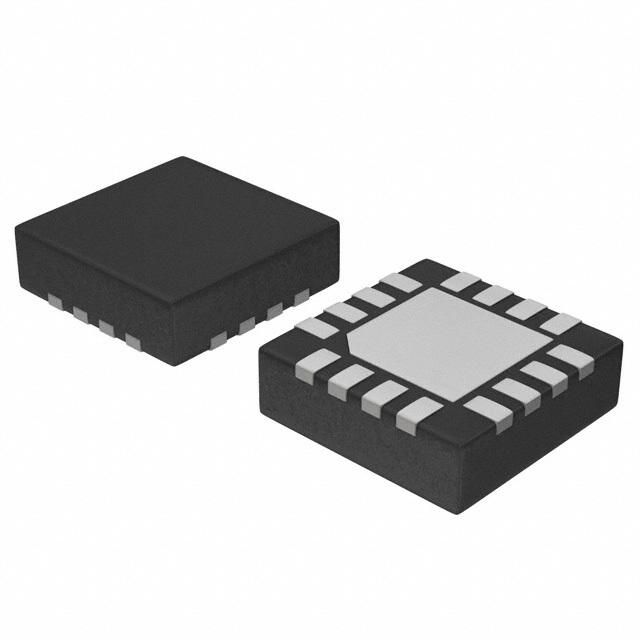

The NBSG72AMNR2G is a GigaComm logic IC from Onsemi, featuring a data rate of 7Gbps. It is available in a QFN package and is suitable for operation over the temperature range of -40°C to 85°C. This device is designed for use with single or dual supplies, with maximum and minimum supply voltages of -3.465V and -2.375V, respectively. The IC is lead free and halogen free, and is compliant with RoHS regulations.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi NBSG72AMNR2G technical specifications.
General
| Package/Case | QFN |
| Data Rate | 7Gbps |
| Halogen Free | Halogen Free |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | -3.465V |
| Min Supply Voltage | -2.375V |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | GigaComm™ |
| Supply Type | Single, Dual |
| Throw Configuration | DPDT |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NBSG72AMNR2G Datasheet
Download the complete datasheet for Onsemi NBSG72AMNR2G to view detailed technical specifications.
No datasheet is available for this part.
