CMOS D-Type Flip-Flop, single-bit, non-inverting logic function. Features positive edge clock triggering, 100MHz frequency, and 16.5ns propagation delay. Operates from 1.65V to 5.5V supply voltage with ±32mA output current. Packaged in SC for surface mount applications, RoHS compliant, and operates within -40°C to 85°C.
Frequency100MHz
PackageSC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi NC7SZ175P6 technical specifications.
General
| Package/Case | SC |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 100MHz |
| High Level Output Current | -32mA |
| Input Type | SINGLE-ENDED |
| Lead Free | Lead Free |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Bits per Element | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Functions | 1 |
| Number of Input Lines | 1 |
| Number of Output Lines | 1 |
| Output Current | 32mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 16.5ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 7SZ |
| Supply Voltage-Nom | 5.5V |
| Technology | CMOS |
| Termination | SMD/SMT |
| Turn-On Delay Time | 9.8ns |
| Weight | 0.028g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NC7SZ175P6 Datasheet
Download the complete datasheet for Onsemi NC7SZ175P6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

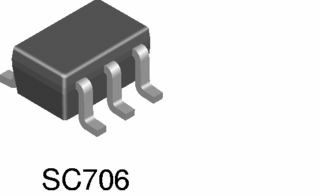

Product Images
