NC7WB3125K8X

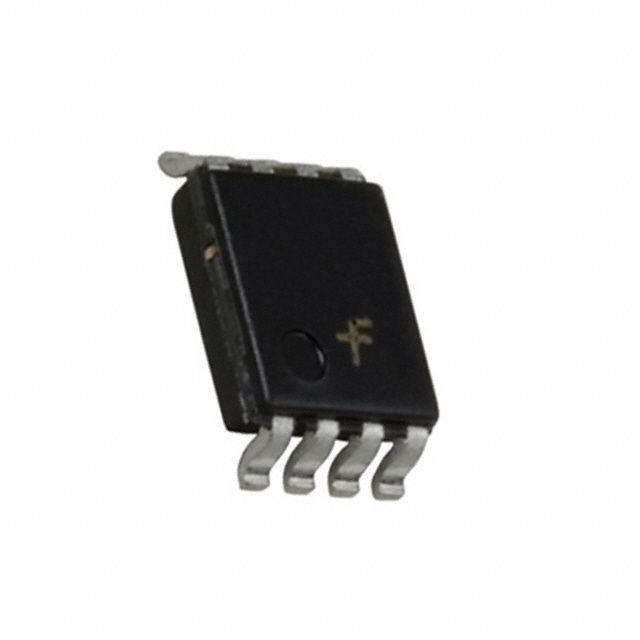

2-Bit Bus Switch IC, 5.5V, CMOS, VSSOP, Industrial

Onsemi

NC7WB3125K8X

Name: NC7WB3125K8X Onsemi
Brand: Onsemi
SKU: NC7WB3125K8X

2-Bit Bus Switch IC, 5.5V, CMOS, VSSOP, Industrial

2-bit bus switch featuring CMOS technology and a 4.8ns propagation delay. This low-power integrated circuit operates with a 4V to 5.5V supply voltage range, offering independent control of two circuits. Delivering ±128mA high/low level output current, it supports a 64mA output current and is designed for surface mounting in a VSSOP package. With a quiescent current of 3uA and an operating temperature range of -40°C to 85°C, this RoHS compliant component is ideal for industrial applications.

MountingSurface Mount

Quick Jump:

Technical Specifications

Onsemi NC7WB3125K8X technical specifications.

General

Address Bus Width	2b
Height	0.7mm
High Level Output Current	-128mA
Independent Circuits	2
JESD-30 Code	R-PDSO-G8
Lead Free	Lead Free
Length	2mm
Low Level Output Current	128mA
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.5V
Min Supply Voltage	4V
Moisture Sensitivity Level	1
Mount	Surface Mount
Number of Bits	2
Number of Circuits	2
Number of Elements	2
Number of Functions	2
Number of Ports	2
Operating Supply Voltage	5V
Output Current	64mA
Output Polarity	True
Package Body Material	Plastic
Package Code	VSSOP
Package Quantity	3000
Package Shape	Rectangular
Packaging	Tape and Reel
Peak Reflow Temperature (Cel)	260°C
Propagation Delay	4.8ns
Quiescent Current	3uA
Radiation Hardening	No
RoHS Compliant	Yes
Supply Type	Single
Supply Voltage-Nom	5.5V
Surface Mount	Yes
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin
Terminal Form	Gull Wing
Terminal Position	DUAL
Throw Configuration	SPST
Turn-On Delay Time	0.25ns
Weight	0.03g
Width	2.3mm
