CMOS logic inverter with Schmitt trigger inputs, featuring two independent inverter circuits. Operates from a 0.9V to 3.6V supply voltage with a typical propagation delay of 9.2ns. Offers ±2.6mA output current capability and a low quiescent current of 900nA. Packaged in a surface-mount SC case, this RoHS compliant component is designed for -40°C to 85°C operation.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi NC7WP14P6X technical specifications.
General
| Package/Case | SC |
| High Level Output Current | -2.6mA |
| Input Type | SCHMITT TRIGGER |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverter, Schmitt Trigger |
| Low Level Output Current | 2.6mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 900mV |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Functions | 2 |
| Number of Gates | 2 |
| Number of Inputs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 9.2ns |
| Quiescent Current | 900nA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 7WP |
| Supply Voltage-Nom | 85V |
| Technology | CMOS |
| Turn-On Delay Time | 48.3ns |
| Weight | 0.028g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NC7WP14P6X Datasheet
Download the complete datasheet for Onsemi NC7WP14P6X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

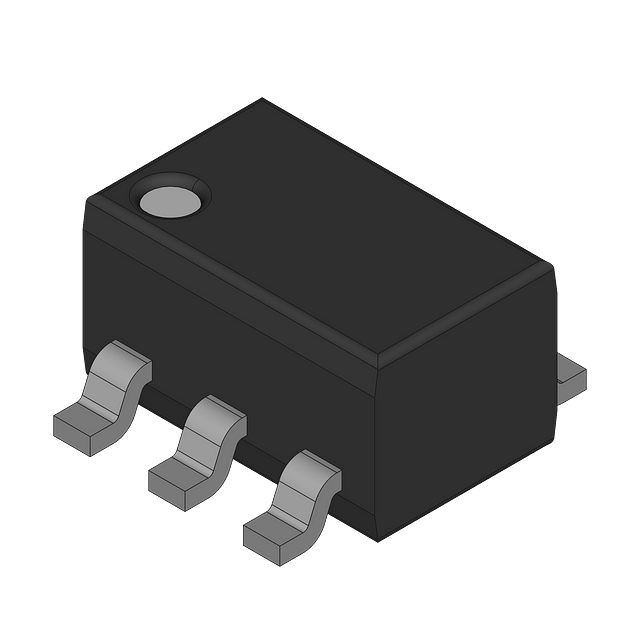

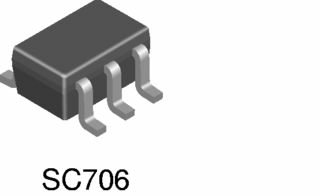

Product Images
