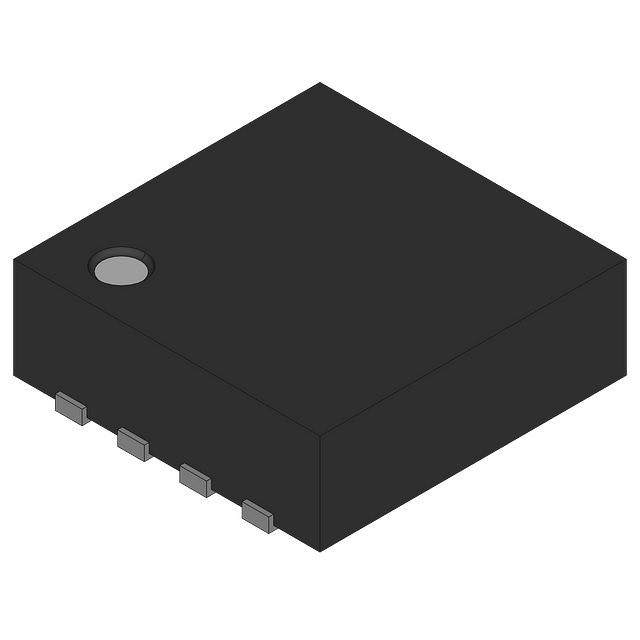

This dual CMOS NAND gate IC features a Schmitt trigger input type and can operate at supply voltages between 1.65V and 5.5V. It can handle high and low level output currents of up to 32mA and has a propagation delay of 4.5ns. The device is RoHS compliant and is packaged in a surface mount VQCCN package. It can operate over a temperature range of -40°C to 85°C and has a quiescent current of 1uA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NC7WZ132L8X datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi NC7WZ132L8X technical specifications.
| High Level Output Current | -32mA |
| Input Type | SCHMITT TRIGGER |
| Lead Free | Lead Free |
| Logic Function | NAND GATE |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Gates | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Propagation Delay | 4.5ns |
| Quiescent Current | 1uA |
| RoHS Compliant | Yes |
| Series | 7WZ |
| Technology | CMOS |
| Weight | 0.025g |
| RoHS | Compliant |
