Technical Specifications
Onsemi NC7WZ38L8X technical specifications.
General
| Lead Free | Lead Free |
| Logic Function | NAND GATE |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Gates | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Propagation Delay | 3.4ns |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 7WZ |
| Technology | CMOS |
| Weight | 0.025g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NC7WZ38L8X Datasheet
Download the complete datasheet for Onsemi NC7WZ38L8X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

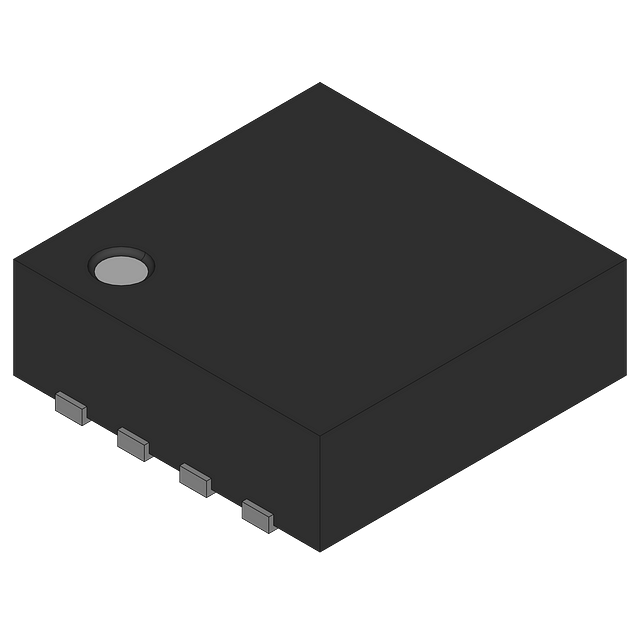

Product Images
