AC to DC switching converter, an off-line switcher, features a 6.6V operating supply voltage and 65kHz switching frequency. It supports an input voltage range of 85V to 265V AC, with a maximum output current of 800mA and output power up to 25W. The device offers fault protection including over voltage, over temperature, and short circuit, with a maximum duty cycle of 73%. Packaged in a 4-Pin SOT-223 surface mount case, this isolated flyback topology converter operates from -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NCP1077STAT3G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

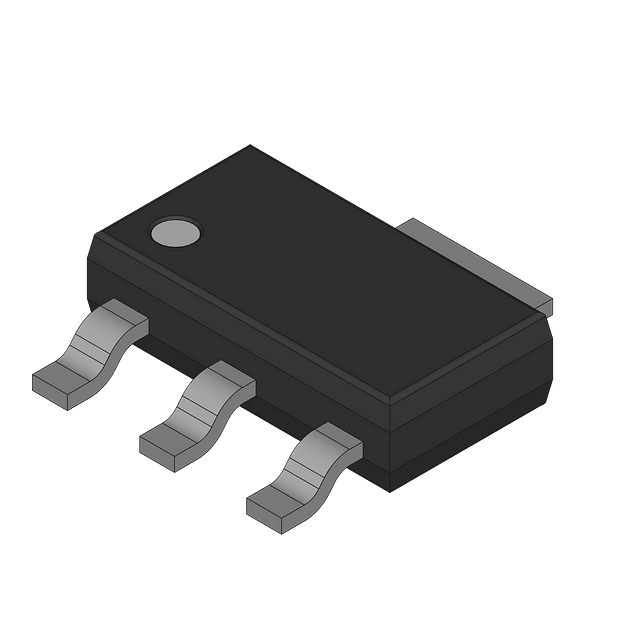

Onsemi NCP1077STAT3G technical specifications.
| Package/Case | SOT-223 |
| Duty Cycle | 69% |
| Fall Time | 10ns |
| Fault Protection | Over Voltage, Over Temperature, Short Circuit |
| Height | 1.65mm |
| Isolation | Isolated |
| Lead Free | Lead Free |
| Length | 6.7mm |
| Max Duty Cycle | 73% |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 25W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Current | 1mA |
| Operating Supply Voltage | 8.1V |
| Output Current | 800mA |
| Output Power | 25W |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Topology | Flyback |
| Weight | 0.006632oz |
| Width | 3.7mm |
| RoHS | Compliant |
Download the complete datasheet for Onsemi NCP1077STAT3G to view detailed technical specifications.
