Technical Specifications
Onsemi NCP1086ST-33T3G technical specifications.
General
| Package/Case | TO-261-4 |
| Input Bias Current | 5mA |
| Lead Free | Lead Free |
| Max Input Voltage | 7V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 3.3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Quiescent Current | 10mA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NCP1086ST-33T3G Datasheet
Download the complete datasheet for Onsemi NCP1086ST-33T3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

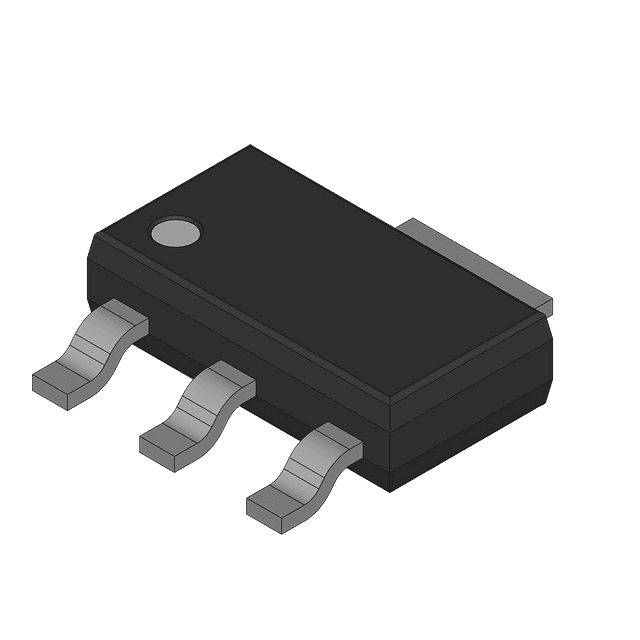

Product Images
