Technical Specifications
Onsemi NCP1207APG technical specifications.
General
| Package/Case | PDIP |
| Fall Time | 20ns |
| Frequency | 200kHz |
| Halogen Free | Halogen Free |
| Height | 4.95mm |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Duty Cycle | 28.6% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 5mA |
| Max Supply Voltage | 20V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Operating Supply Voltage | 18V |
| Output Current | 500mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Topology | Flyback |
| Width | 7.11mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NCP1207APG Datasheet
Download the complete datasheet for Onsemi NCP1207APG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

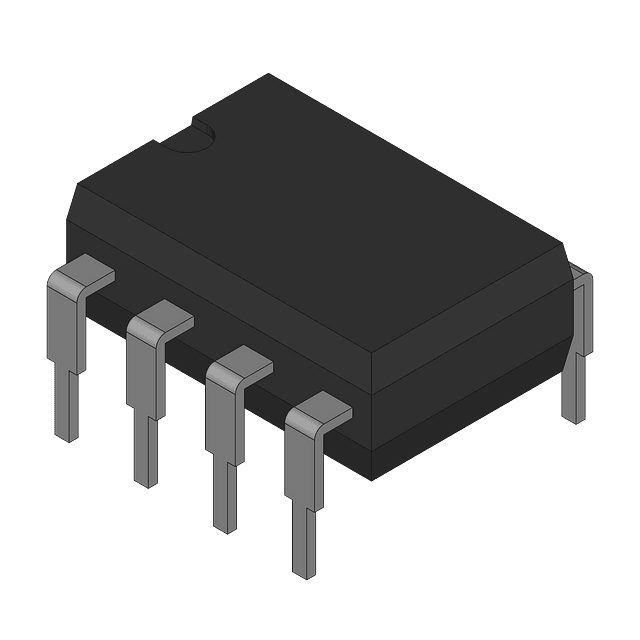

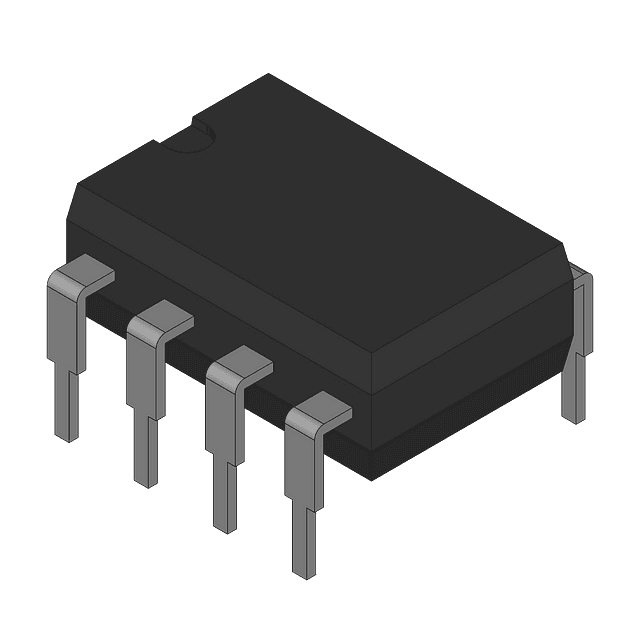

Product Images
