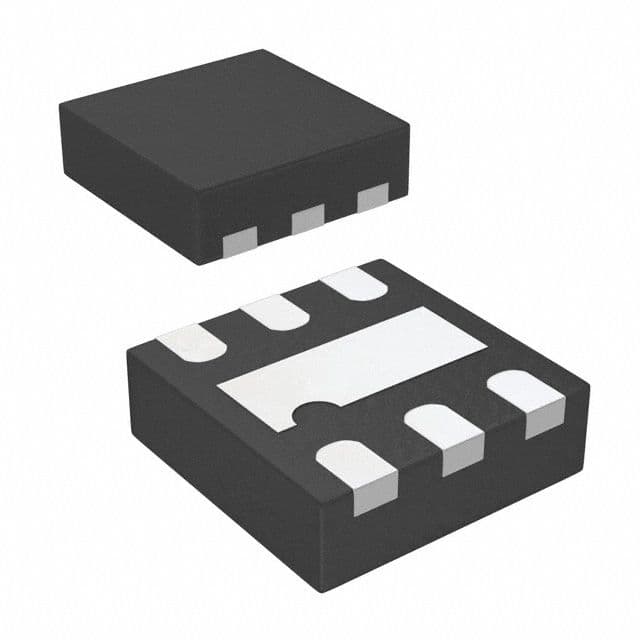

Adjustable LDO regulator delivering 500 mA output current with ultra-low dropout voltage of 140 mV. Features high 70 dB Power Supply Rejection Ratio (PSRR) and 0.5% accuracy. Operates from 800 mV to 5.5 V input, providing an adjustable output voltage from 800 mV to 3.6 V. Packaged in a compact 1.2 mm x 1.2 mm x 0.4 mm surface-mount package, supplied on a 3000-piece tape and reel. RoHS compliant with active discharge functionality.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NCP133AMXADJTCG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 0.5% |
| Dropout Voltage | 140mV |
| Height | 0.4mm |
| Lead Free | Lead Free |
| Length | 1.2mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 800mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 3.6V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 500mA |
| Output Type | Adjustable |
| Output Voltage | 3.6V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Reach SVHC Compliant | No |
| Reference Voltage | 800mV |
| RoHS Compliant | Yes |
| Width | 1.2mm |
| RoHS | Compliant |
