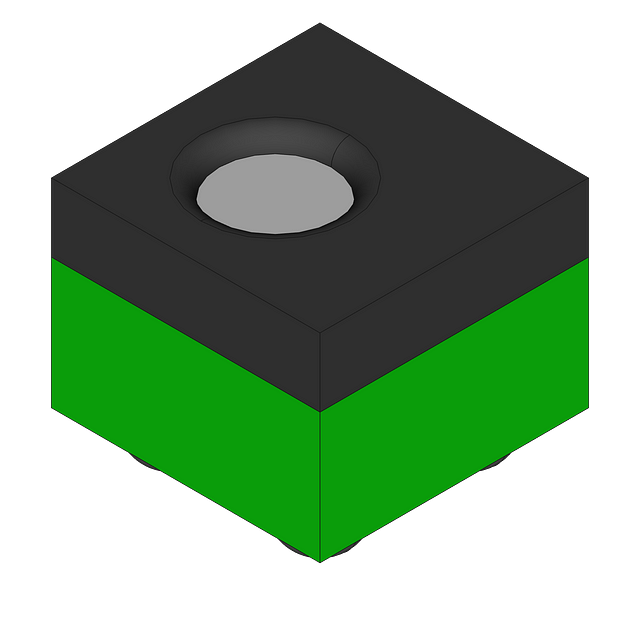

The NCP160AFCT330T2G is a linear voltage regulator with an output voltage of 3.3V and a maximum output current of 250mA. It operates over a temperature range of -40°C to 125°C and is packaged in a surface mount XFBGA, BGA4,2X2,14 package. The regulator has a quiescent current of 23uA and is RoHS compliant. It can handle a maximum input voltage of 5.5V and a minimum input voltage of 1.9V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NCP160AFCT330T2G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi NCP160AFCT330T2G technical specifications.
| Accuracy | 2% |
| Dropout Voltage | 80mV |
| Lead Free | Lead Free |
| Min Current Limit | 250mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.9V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 23uA |
| RoHS Compliant | Yes |
| Weight | 0.002413oz |
| RoHS | Compliant |
