Adjustable DC/DC switching regulator supporting boost, buck, and inverting conversion. Features a maximum output current of 1.5A and an adjustable output voltage range from 1.25V to 40V. Operates with an input voltage range of 3V to 40V, ideal for power management applications. Housed in a compact 4mm x 4mm DFN package, this surface-mount component offers a wide operating temperature range of -40°C to +125°C. RoHS and Halogen Free compliant, supplied on a 4000-piece tape and reel.
PackageDFN
Current7mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi NCP3063BMNTXG technical specifications.
General
| Package/Case | DFN |
| Halogen Free | Halogen Free |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 4mm |
| Logic Function | Inverter |
| Max Input Voltage | 40V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 40V |
| Min Output Voltage | 1.25V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 40V |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 7mA |
| Switching Frequency-Max | 190kHz |
| Synchronous Rectifier | No |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NCP3063BMNTXG Datasheet
Download the complete datasheet for Onsemi NCP3063BMNTXG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

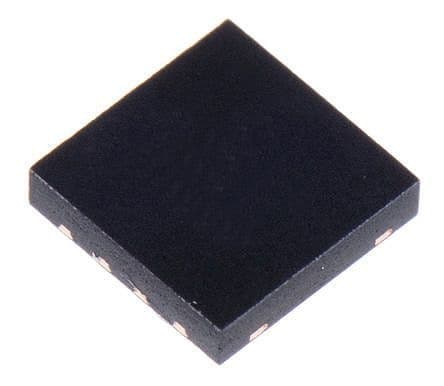

Product Images
