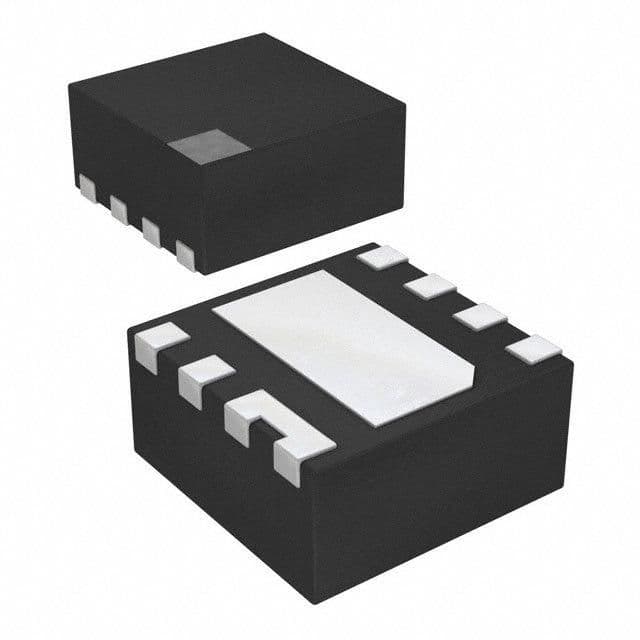

The NCP45520IMNTWG-L is a high side driver from Onsemi with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It features a maximum output current of 10.5A and a maximum power dissipation of 2.5W. The device is packaged in a DFN-8 package and is designed for surface mount applications. It is RoHS compliant and lead free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NCP45520IMNTWG-L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DFN |
| Fault Protection | Over Temperature |
| Halogen Free | Halogen Free |
| Height | 0.95mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10.5A |
| Max Power Dissipation | 2.5W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ecoSWITCH™ |
| Supply Current | 500uA |
| Voltage | 5.5V |
| Width | 2mm |
| RoHS | Compliant |
Download the complete datasheet for Onsemi NCP45520IMNTWG-L to view detailed technical specifications.
