Onsemi
NCP585HSN10T1G
Linear Voltage Regulator, Tri-Mode, CMOS LDO, 300 mA, with Enable Vout: 1.0 V; Active High w/Auto Discharge, LP and FT Mode, SOT-23 5 LEAD, 3000-REEL
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Onsemi NCP585HSN10T1G technical specifications.
General
| Accuracy | 3% |
| Package/Case | SOT-23-5 |
| Dropout Voltage | 480mV |
| Input Bias Current | 80uA |
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 1.4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 300mA |
| Min Output Voltage | 1V |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 300mA |
| Output Type | Fixed |
| Output Voltage | 1V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 111uA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NCP585HSN10T1G Datasheet
Download the complete datasheet for Onsemi NCP585HSN10T1G to view detailed technical specifications.
No datasheet is available for this part.

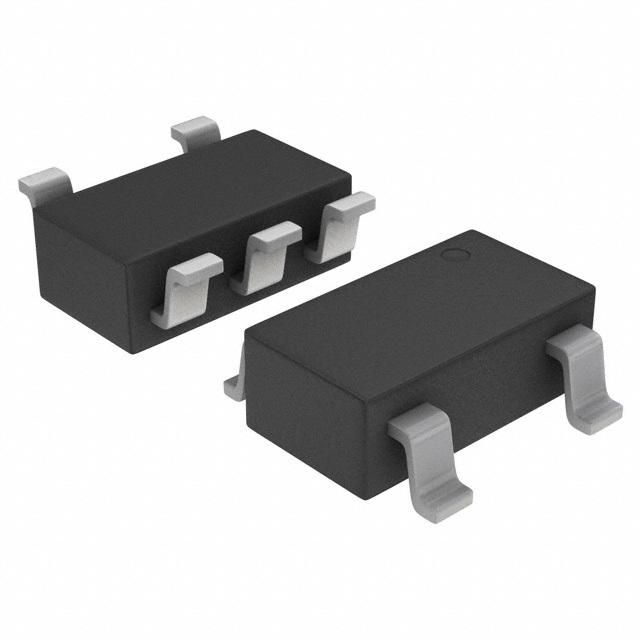

Product Images
