Ultra-low quiescent current (2.5µA) positive linear voltage regulator, providing a fixed 3.3V output with 2% accuracy. Features a 150mA maximum output current and a low dropout voltage of 370mV. Designed for surface mount applications in a compact SC-82AB package, operating from a maximum input voltage of 6V. Suitable for a wide temperature range of -40°C to 85°C.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Onsemi NCP698SQ33T1G technical specifications.
General
| Accuracy | 2% |
| Dropout Voltage | 370mV |
| Halogen Free | Halogen Free |
| Height | 0.039inch |
| Input Bias Current | 2.5uA |
| Lead Free | Lead Free |
| Length | 0.086inch |
| Max Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 280mA |
| Min Output Voltage | 3.3V |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Operating Supply Voltage | 6V |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Output Voltage Accuracy | 2% |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 2.5uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 0.053inch |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NCP698SQ33T1G Datasheet
Download the complete datasheet for Onsemi NCP698SQ33T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

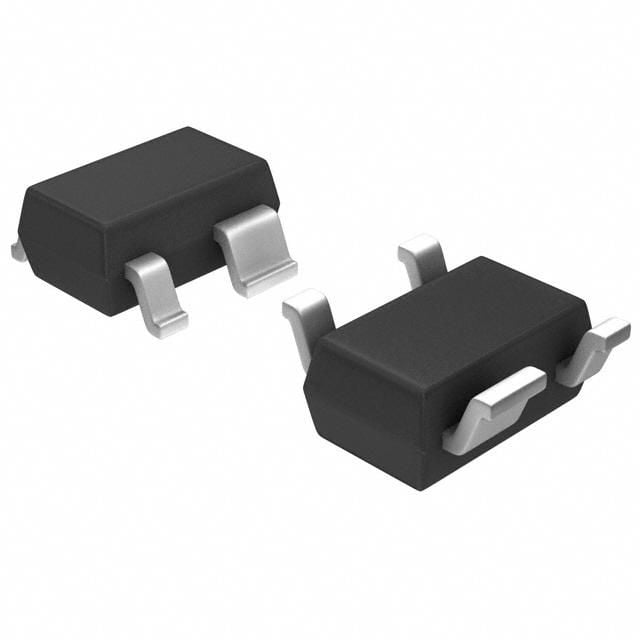

Product Images
