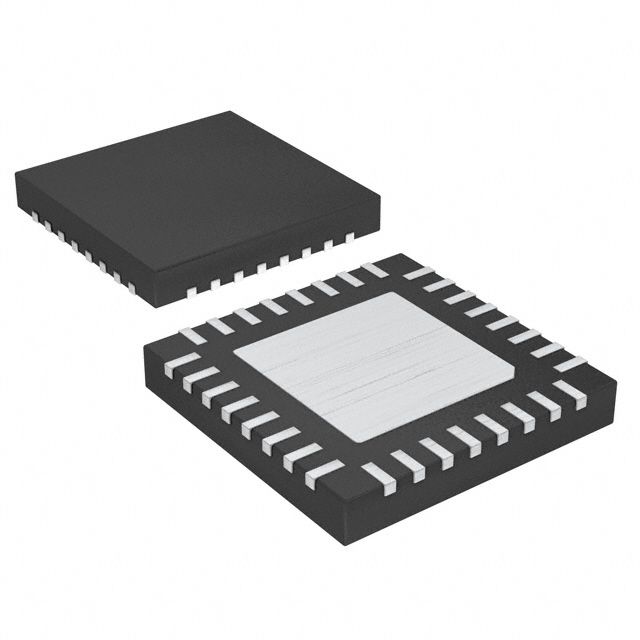

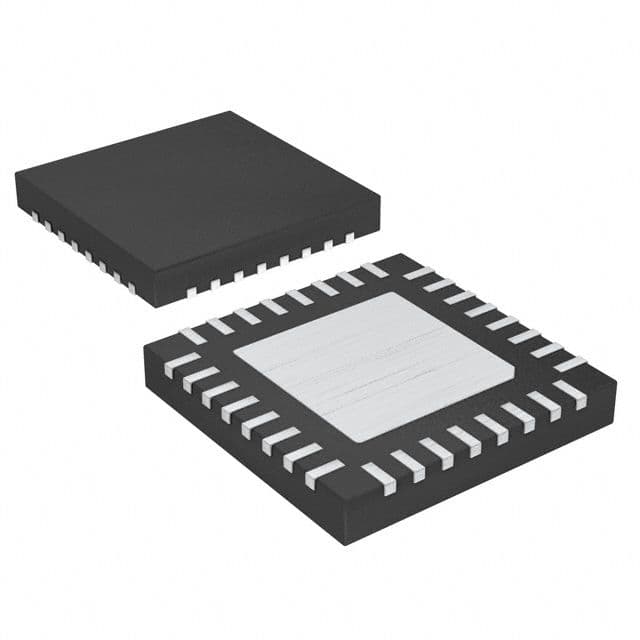

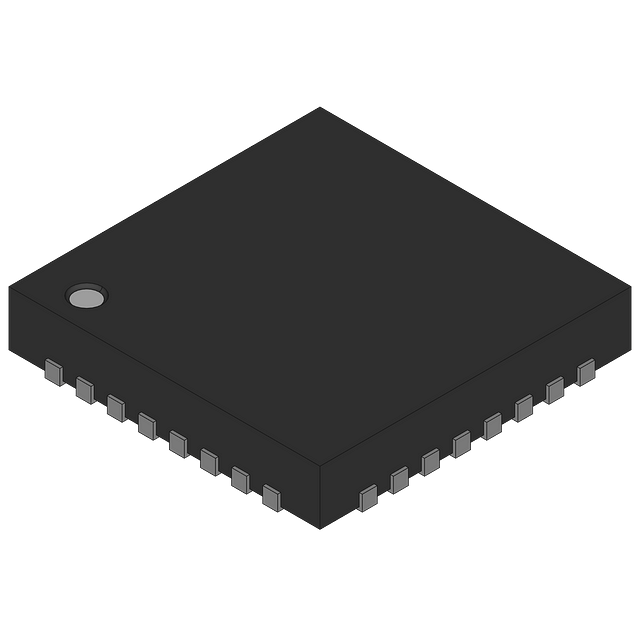

Multi-Phase Synchronous Buck Controller with Power Saving Mode and PWM VID Interface, QFN32, 5x5, 0.5P, 3.1x3.1EP, 2500-REEL
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NCP81174MNTXG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi NCP81174MNTXG technical specifications.
| Package/Case | QFN |
| Clock Sync | No |
| Lead Free | Lead Free |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of Output Phases | 4 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 20V |
| Output Configuration | Positive |
| Output Current | 500uA |
| Output Type | PWM |
| Output Voltage | 3V |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| RoHS | Compliant |
Download the complete datasheet for Onsemi NCP81174MNTXG to view detailed technical specifications.
