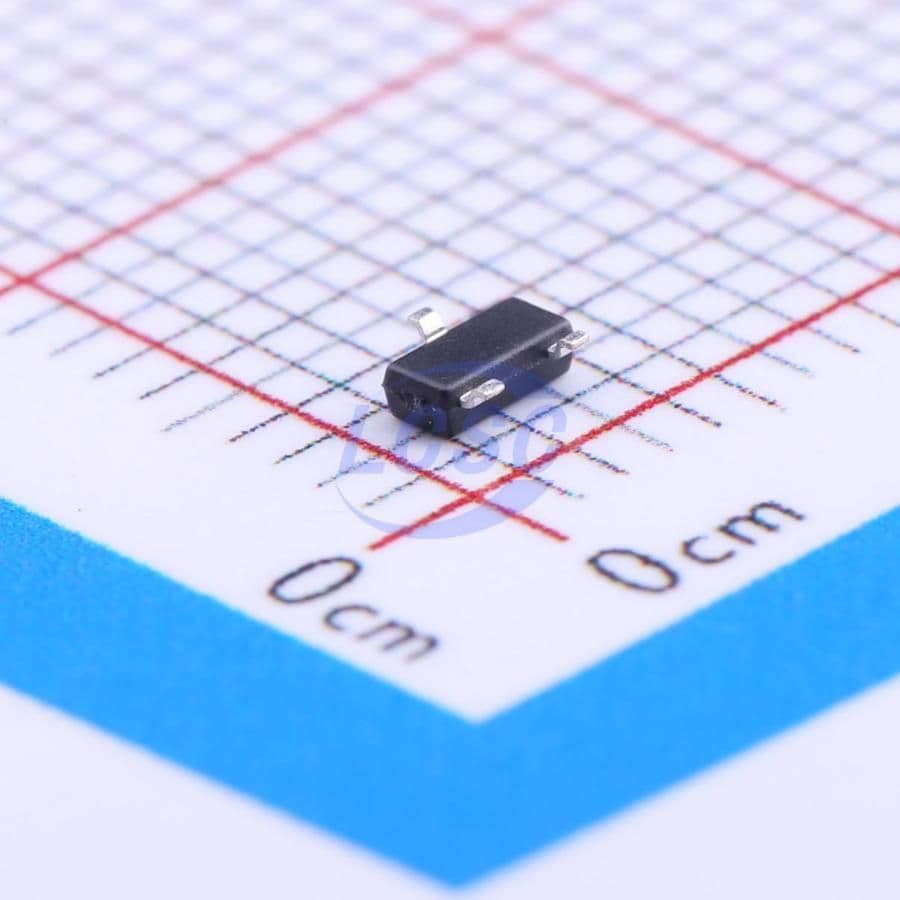

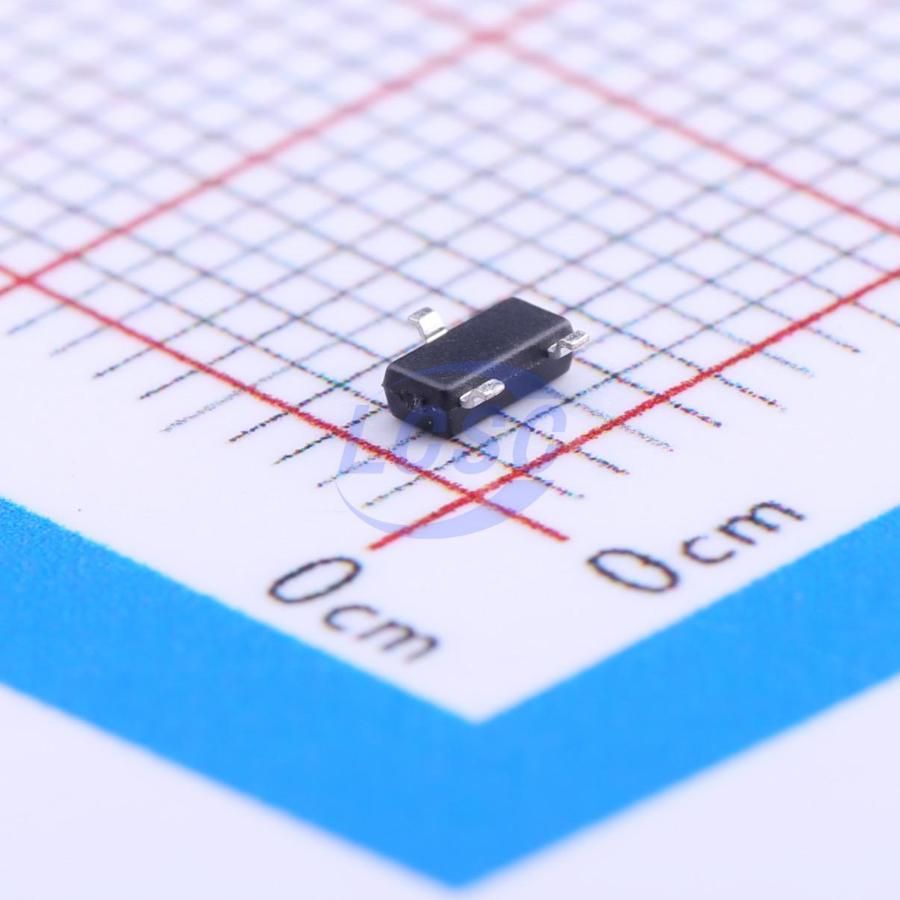

N-Channel Logic Level MOSFET, 30V Vds, 1.4A ID, and 160mΩ Rds(on) at 10Vgs. Features a 3ns turn-on delay and 16ns turn-off delay, with a 145pF input capacitance. This single-element, surface-mount device is housed in a TO-236-3 package, rated for 500mW power dissipation and operating temperatures from -55°C to 150°C. Supplied on a 3000-piece tape and reel, it is RoHS compliant.
Checking distributor stock and pricing after the page loads.
| Package/Case | TO-236-3 |
| Continuous Drain Current (ID) | 1.4A |
| Current Rating | 1.2A |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 92mR |
| Drain to Source Voltage (Vdss) | 30V |
| Drain-source On Resistance-Max | 160MR |
| Dual Supply Voltage | 30V |
| Element Configuration | Single |
| Fall Time | 8ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.22mm |
| Input Capacitance | 145pF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Nominal Vgs | 2.1V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 500mW |
| Rds On Max | 160mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerTrench® |
| Termination | SMD/SMT |
| Threshold Voltage | 2.1V |
| Turn-Off Delay Time | 16ns |
| Turn-On Delay Time | 3ns |
| DC Rated Voltage | 30V |
| Weight | 0.03g |
| Width | 3.05mm |
| RoHS | Compliant |
These are design resources that include the Onsemi NDS351AN
Immediate product discontinuance notice from onsemi for various MOSFETs and discrete components produced at the Tower fab, effective December 24, 2021.
onsemi Product Discontinuance Notice PD24446X3 for Tower Jazz Fab products. Last time buy is March 31, 2022, with final shipments by March 31, 2023.
Onsemi PD23406Z notice announcing the discontinuance of various standard parts. Last time buy is Feb 17, 2021, with final shipments scheduled by Aug 17, 2021.
