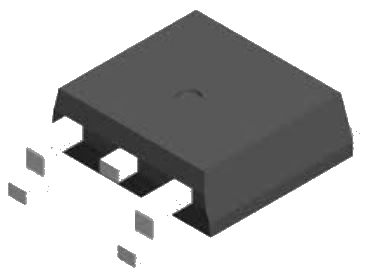

The NGB8207ABNT4G is a 365V insulated gate bipolar transistor (IGBT) packaged in a D2PAK. It can handle a maximum collector current of 20A and a maximum power dissipation of 165W. The device is RoHS compliant and lead free, with a maximum operating temperature of 175°C and a minimum operating temperature of -55°C. It is available in a tape and reel packaging format.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NGB8207ABNT4G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | D2PAK |
| Collector Emitter Breakdown Voltage | 365V |
| Collector Emitter Voltage (VCEO) | 365V |
| Collector-emitter Voltage-Max | 2.05V |
| Halogen Free | Halogen Free |
| Height | 4.83mm |
| Lead Free | Lead Free |
| Length | 10.29mm |
| Max Collector Current | 20A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 165W |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Width | 9.65mm |
| RoHS | Compliant |
