Technical Specifications
Onsemi NGTB25N120FL2WG technical specifications.
General
| Package/Case | TO-247-3 |
| Collector Emitter Breakdown Voltage | 1.2kV |
| Collector-emitter Voltage-Max | 2.4V |
| Input Type | STANDARD |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 1.2kV |
| Max Collector Current | 50A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 385W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Reverse Recovery Time | 154ns |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NGTB25N120FL2WG Datasheet
Download the complete datasheet for Onsemi NGTB25N120FL2WG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

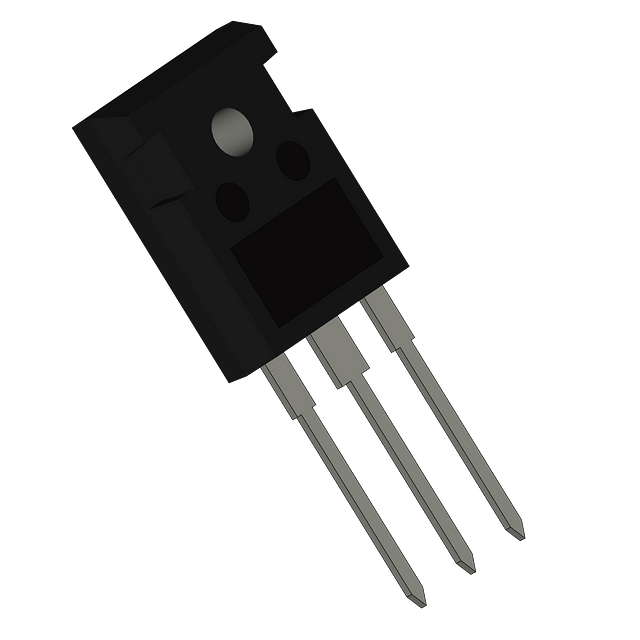

Product Images
