The NGTG15N120FL2WG is a 1.2kV insulated gate bipolar transistor with a maximum collector current of 30A and a maximum operating temperature of 175°C. It is packaged in a TO-247-3 case and is designed for through hole mounting. The transistor is lead free and RoHS compliant, making it suitable for use in a variety of applications. The maximum power dissipation of the transistor is 294W, and it is rated for operation over a temperature range of -55°C to 175°C.
PackageTO-247-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi NGTG15N120FL2WG technical specifications.
General
| Package/Case | TO-247-3 |
| Collector Emitter Breakdown Voltage | 1.2kV |
| Collector-emitter Voltage-Max | 2.4V |
| Input Type | STANDARD |
| Lead Free | Lead Free |
| Max Collector Current | 30A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 294W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NGTG15N120FL2WG Datasheet
Download the complete datasheet for Onsemi NGTG15N120FL2WG to view detailed technical specifications.
No datasheet is available for this part.

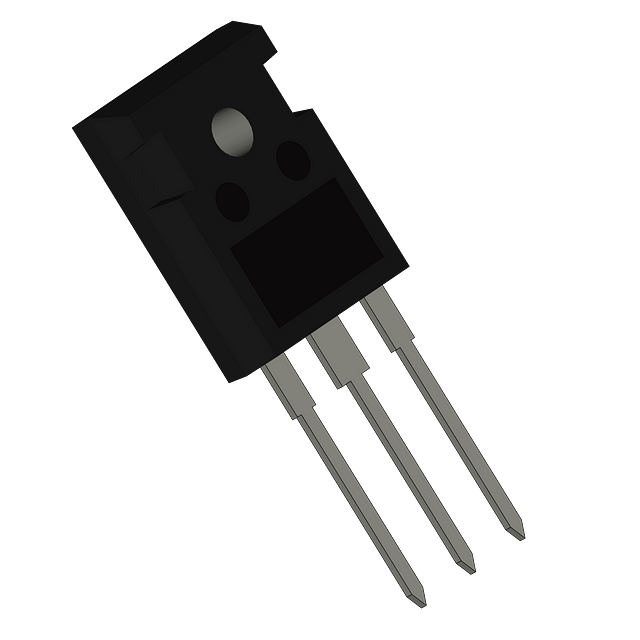

Product Images
