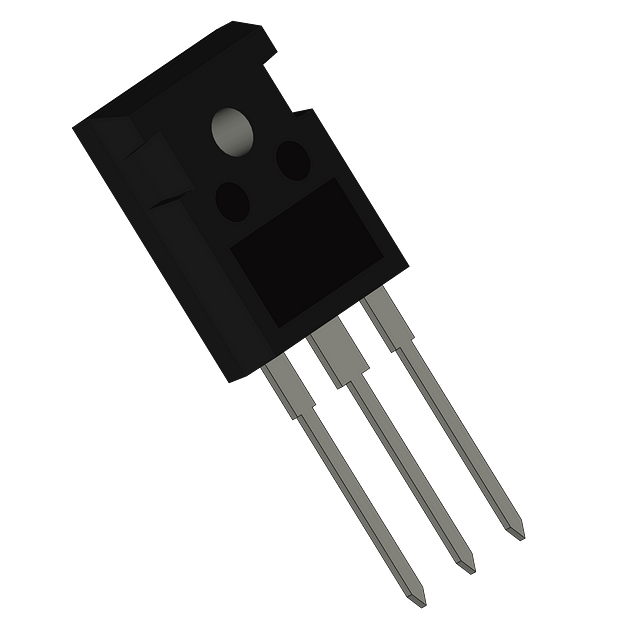

The NGTG50N60FLWG is a 600V insulated gate bipolar transistor with a maximum collector current of 100A. It features a TO-247-3 package and is lead free and RoHS compliant. The device has a maximum power dissipation of 223W and operates within a temperature range of -55°C to 150°C. It is packaged in a rail/Tube with 30 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NGTG50N60FLWG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-247-3 |
| Collector Emitter Breakdown Voltage | 600V |
| Collector Emitter Saturation Voltage | 1.65V |
| Collector Emitter Voltage (VCEO) | 600V |
| Collector-emitter Voltage-Max | 1.9V |
| Halogen Free | Halogen Free |
| Height | 21.08mm |
| Input Type | STANDARD |
| Lead Free | Lead Free |
| Length | 16.26mm |
| Max Collector Current | 100A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 223W |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 5.3mm |
| RoHS | Compliant |
Download the complete datasheet for Onsemi NGTG50N60FLWG to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the Onsemi NGTG50N60FLWG
Onsemi PD22557Z notifies of product discontinuance for various parts. Last time buy date is July 30, 2019, with a last ship date of January 30, 2020.
