NPN Bipolar Power Transistor, TO-264-5 package, featuring ThermalTrak technology. Maximum collector current of 15A and a collector-emitter voltage (VCEO) of 260V. Offers a transition frequency of 30MHz and a minimum hFE of 75. Maximum power dissipation is 200W, with operating temperatures ranging from -65°C to 150°C. This RoHS compliant component is supplied in a 25-unit rail/tube.
Frequency30MHz
PackageTO-264-5
Current Rating15A
PolarityNPN
Quick Jump:
Technical Specifications
Onsemi NJL3281DG technical specifications.
General
| Package/Case | TO-264-5 |
| Collector Base Voltage (VCBO) | 260V |
| Collector Emitter Breakdown Voltage | 260V |
| Collector Emitter Saturation Voltage | 3V |
| Collector Emitter Voltage (VCEO) | 260V |
| Collector-emitter Voltage-Max | 3V |
| Current Rating | 15A |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 30MHz |
| Gain Bandwidth Product | 30MHz |
| Height | 25.98mm |
| hFE Min | 75 |
| Lead Free | Lead Free |
| Length | 19.89mm |
| Max Breakdown Voltage | 260V |
| Max Collector Current | 15A |
| Max Frequency | 30MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200W |
| Number of Elements | 1 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Polarity | NPN |
| Power Dissipation | 200W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 30MHz |
| DC Rated Voltage | 260V |
| Width | 4.89mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NJL3281DG Datasheet
Download the complete datasheet for Onsemi NJL3281DG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

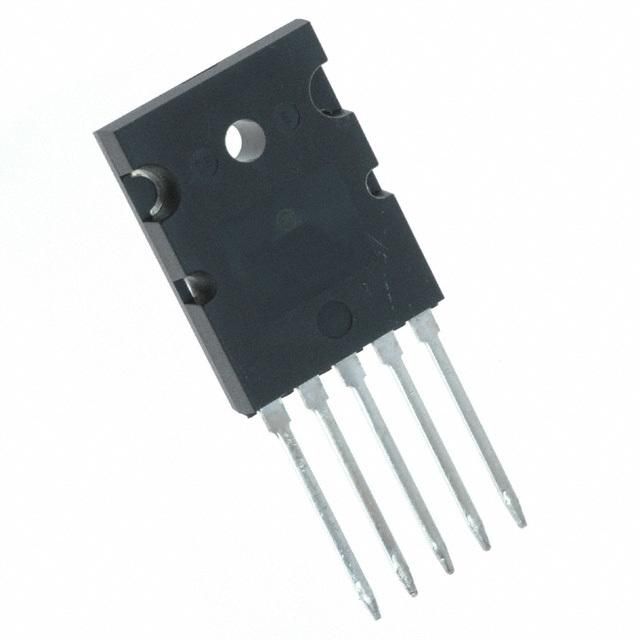

Product Images
