Dual buffer IC featuring 3-state outputs and high enable functionality. Operates with a supply voltage range of 1.65V to 5.5V, nominal 5V, and supports CMOS technology. Offers 2 channels with 1-bit per element, providing 32mA output current at both high and low levels. Packaged in a compact 2.1mm x 2.4mm x 0.8mm surface mount US8 package, this RoHS and Halogen Free component boasts a 15ns propagation delay.
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi NL27WZ126USG technical specifications.
General
Halogen Free
Halogen Free
Height
0.8mm
High Level Output Current
-32mA
Lead Free
Lead Free
Length
2.4mm
Logic Function
Buffer, Inverting
Low Level Output Current
32mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
250mW
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
2
Number of Bits per Element
1
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
3
Number of Outputs
2
Output Type
3-STATE
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
15ns
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
27WZ
Supply Voltage-Nom
5V
Technology
CMOS
Turn-On Delay Time
6ns
Width
2.1mm
Compliance
RoHS
Compliant
Datasheet
Onsemi NL27WZ126USG Datasheet
Download the complete datasheet for Onsemi NL27WZ126USG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

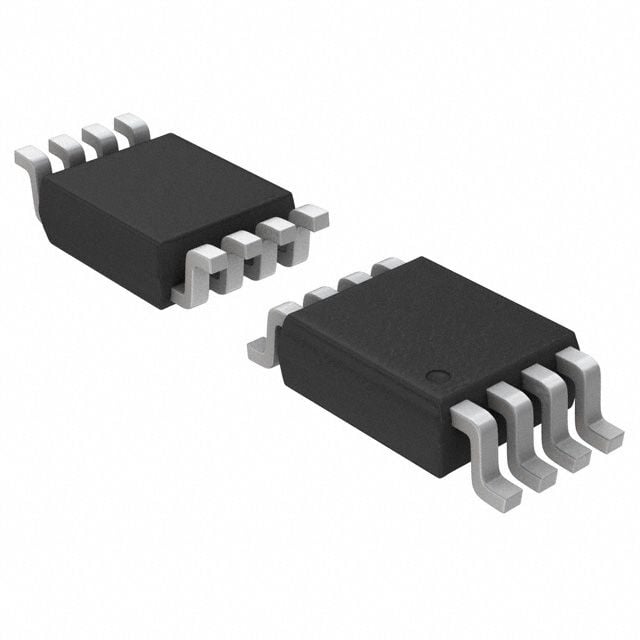

Product Images
