ONSEMI

NL27WZ16DFT2G

2-CH Buffer, CMOS, Non-Inverting, 1.65-5.5V, 2-CH, SC-88

Onsemi

NL27WZ16DFT2G

Name: NL27WZ16DFT2G Onsemi
Brand: Onsemi
SKU: NL27WZ16DFT2G

2-CH Buffer, CMOS, Non-Inverting, 1.65-5.5V, 2-CH, SC-88

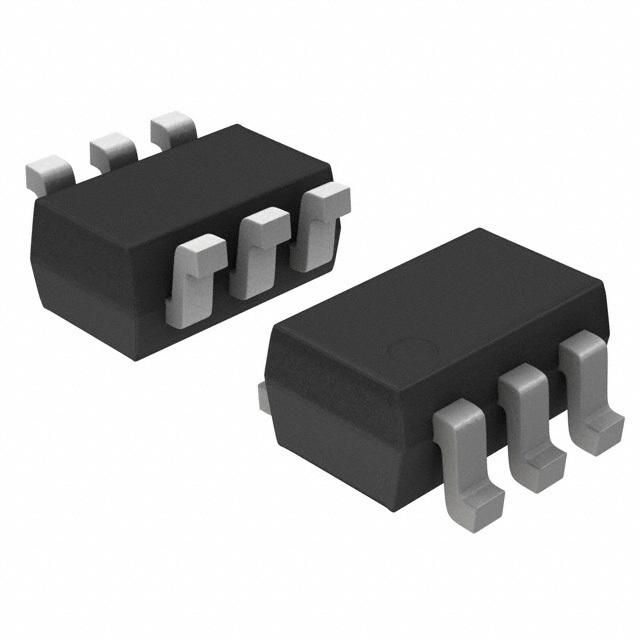

2-channel non-inverting CMOS buffer IC, featuring push-pull output and a propagation delay of 10.2ns. This surface-mount component operates from a 1.65V to 5.5V supply, with output currents of 32mA (low) and -32mA (high). Housed in a compact 6-pin SC-88 package, it offers a wide operating temperature range of -40°C to 85°C.

PackageSC

MountingSurface Mount

PolarityNon-Inverting

Quick Jump:

Technical Specifications

Onsemi NL27WZ16DFT2G technical specifications.

General

Package/Case	SC
Halogen Free	Halogen Free
Height	1mm
High Level Output Current	-32mA
Lead Free	Lead Free
Length	2.2mm
Logic Function	Buffer, Inverting
Low Level Output Current	32mA
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Power Dissipation	200mW
Max Supply Voltage	5.5V
Min Supply Voltage	1.65V
Mount	Surface Mount
Number of Bits	2
Number of Bits per Element	1
Number of Channels	2
Number of Elements	2
Number of Input Lines	2
Number of Inputs	2
Number of Output Lines	2
Number of Outputs	2
Output Type	PUSH-PULL
Package Quantity	1
Packaging	Tape and Reel
Polarity	Non-Inverting
Propagation Delay	10.2ns
Quiescent Current	1uA
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	No
Schmitt Trigger Input	No
Series	27WZ
Technology	CMOS
Turn-On Delay Time	10.2ns
Width	1.35mm
