Triple buffer logic IC featuring 3 independent buffer elements, each with 1 input and 1 output. Operates with a supply voltage range of 1.65V to 5.5V, supporting a nominal 5.5V. Offers a high level output current of -32mA and a low level output current of 32mA. CMOS technology ensures low quiescent current of 1uA. Surface mountable in a compact 2.4mm x 2.1mm x 0.8mm package. RoHS and Halogen Free compliant.
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi NL37WZ16USG technical specifications.
General
| Halogen Free | Halogen Free |
| Height | 0.8mm |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Length | 2.4mm |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 200mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 3 |
| Number of Bits per Element | 1 |
| Number of Channels | 3 |
| Number of Elements | 3 |
| Number of Functions | 3 |
| Number of Input Lines | 3 |
| Number of Inputs | 3 |
| Number of Output Lines | 3 |
| Number of Outputs | 3 |
| Output Type | PUSH-PULL |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 8.8ns |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | No |
| Series | 37WZ |
| Supply Voltage-Nom | 5.5V |
| Technology | CMOS |
| Termination | SMD/SMT |
| Turn-On Delay Time | 5.1ns |
| Width | 2.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NL37WZ16USG Datasheet
Download the complete datasheet for Onsemi NL37WZ16USG to view detailed technical specifications.
No datasheet is available for this part.

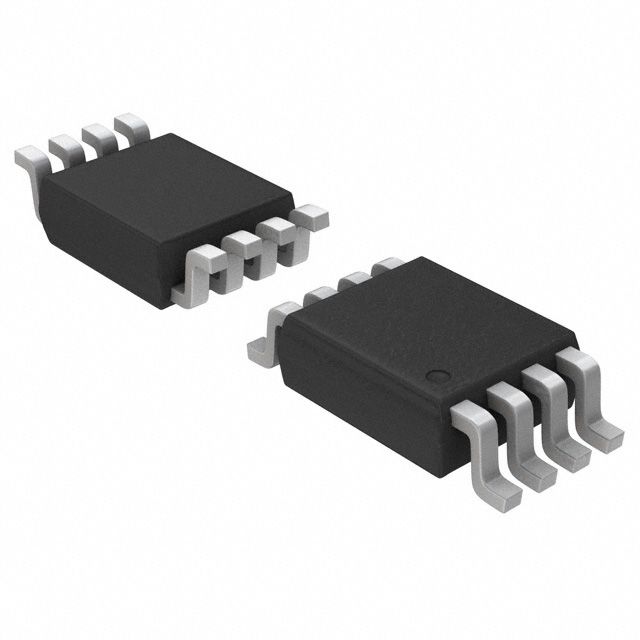

Product Images
