Dual SPST analog switch with 186MHz bandwidth, operating from 1.65V to 5.5V. Features 7Ω on-state resistance and 2ns turn-on delay. Housed in a compact VSSOP package, this component offers ultra-low 1µA operating supply current and 250mW power dissipation. It is RoHS and Halogen Free compliant, designed for applications requiring efficient signal switching.
PackageVSSOP
Current2uA
Power250mW
Quick Jump:
Technical Specifications
Onsemi NLAS2066USG technical specifications.
General
| Bandwidth | 186MHz |
| Package/Case | VSSOP |
| Halogen Free | Halogen Free |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 2.1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Number of Bits | 2 |
| Number of Channels | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 2 |
| On-State Resistance | 7R |
| Operating Supply Current | 1uA |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2uA |
| Supply Type | Single |
| Throw Configuration | SPST |
| Turn-On Delay Time | 2ns |
| Width | 2.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NLAS2066USG Datasheet
Download the complete datasheet for Onsemi NLAS2066USG to view detailed technical specifications.
No datasheet is available for this part.

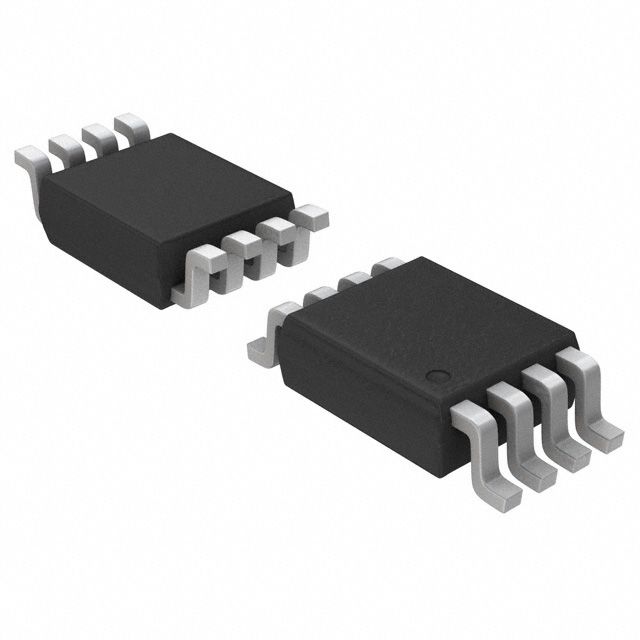

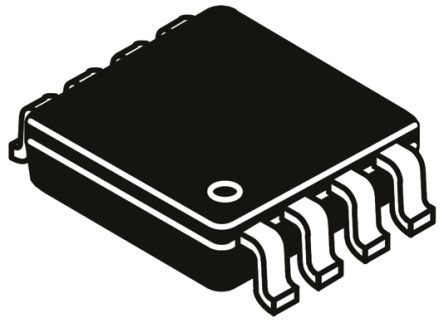

Product Images
