Onsemi
NLAST4501DFT2G
SPST Analog Switch Single Supply, TTL Level, SC-88A (SC-70-5 / SOT-353), 3000-REEL
PackageSC
Power150mW
Quick Jump:
Technical Specifications
Onsemi NLAST4501DFT2G technical specifications.
General
| Package/Case | SC |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150mW |
| Max Supply Current | 1uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Number of Bits | 1 |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 30R |
| Operating Supply Current | 1uA |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NLAST4501DFT2G Datasheet
Download the complete datasheet for Onsemi NLAST4501DFT2G to view detailed technical specifications.
No datasheet is available for this part.

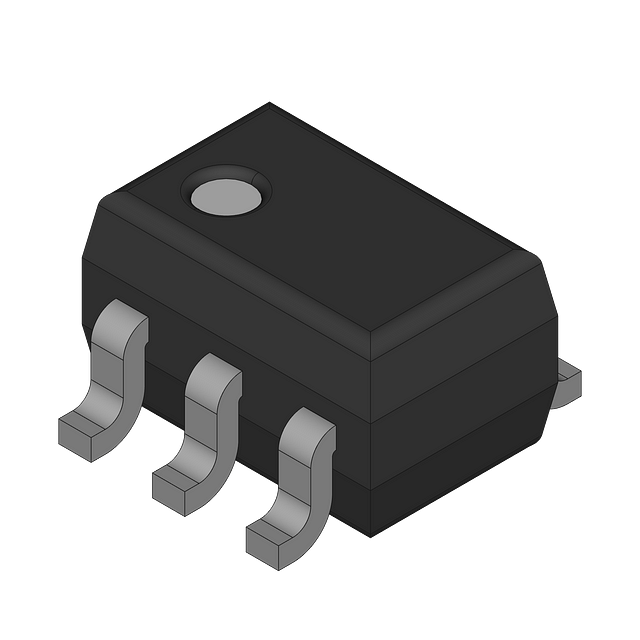

Product Images
