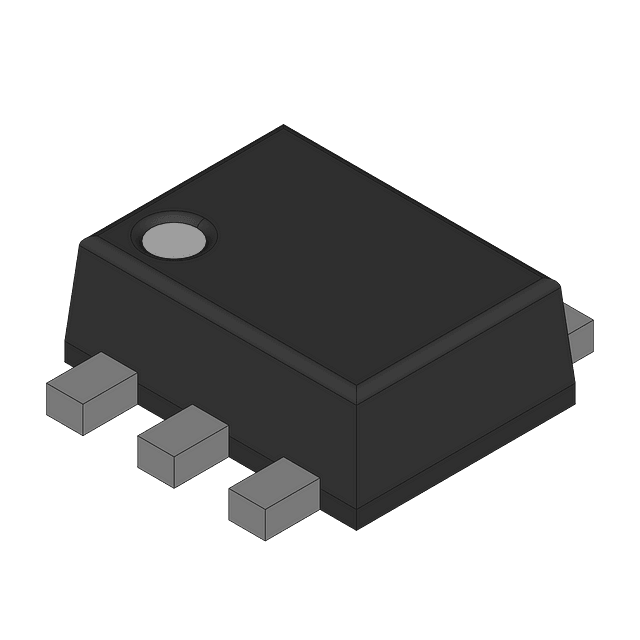

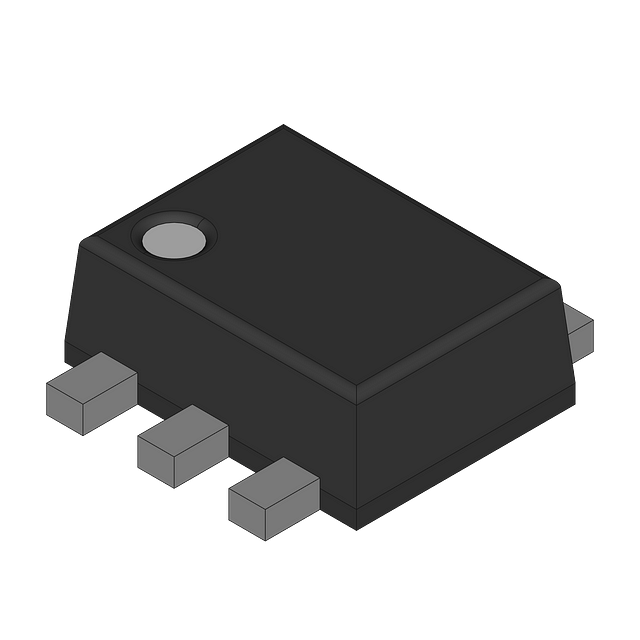

1-channel unidirectional voltage level translator for surface mount applications. Features 3-state output, 3.3ns propagation delay, and 3.3ns turn-on delay. Operates with a supply voltage range of 900mV to 4.5V, offering -24mA high-level output current and 24mA low-level output current. This RoHS and Halogen Free component is packaged in a 6-pin ULLGA with a compact 1.45mm x 1mm x 0.35mm footprint, supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NLSV1T34AMX1TCG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Channel Type | Unidirectional |
| Halogen Free | Halogen Free |
| Height | 0.35mm |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Length | 1.45mm |
| Logic Function | Translator |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 4.5V |
| Min Supply Voltage | 900mV |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Output Type | 3-STATE |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 3.3ns |
| Quiescent Current | 2uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 3.3ns |
| Width | 1mm |
| RoHS | Compliant |
Download the complete datasheet for Onsemi NLSV1T34AMX1TCG to view detailed technical specifications.
