Onsemi
NLSV1T34MUTBG
1-Bit Dual-Supply Non-Inverting Level Translator, UDFN6, 1.2 x 1.0, 0.4P, 3000-REEL
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi NLSV1T34MUTBG technical specifications.
General
Halogen Free
Halogen Free
Height
0.5mm
High Level Output Current
-24mA
Lead Free
Lead Free
Length
1.2mm
Logic Function
Translator
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
4.5V
Min Supply Voltage
900mV
Mount
Surface Mount
Number of Bits
1
Number of Channels
1
Output Type
Voltage, 3-STATE
Package Quantity
3000
Packaging
Tape and Reel
Propagation Delay
1.6ns
Quiescent Current
2uA
Radiation Hardening
No
RoHS Compliant
Yes
Turn-On Delay Time
3.3ns
Width
1mm
Compliance
RoHS
Compliant
Datasheet
Onsemi NLSV1T34MUTBG Datasheet
Download the complete datasheet for Onsemi NLSV1T34MUTBG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

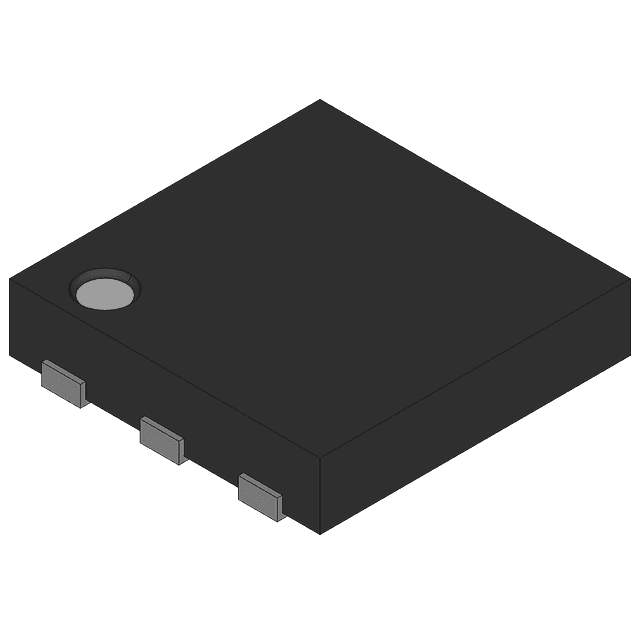

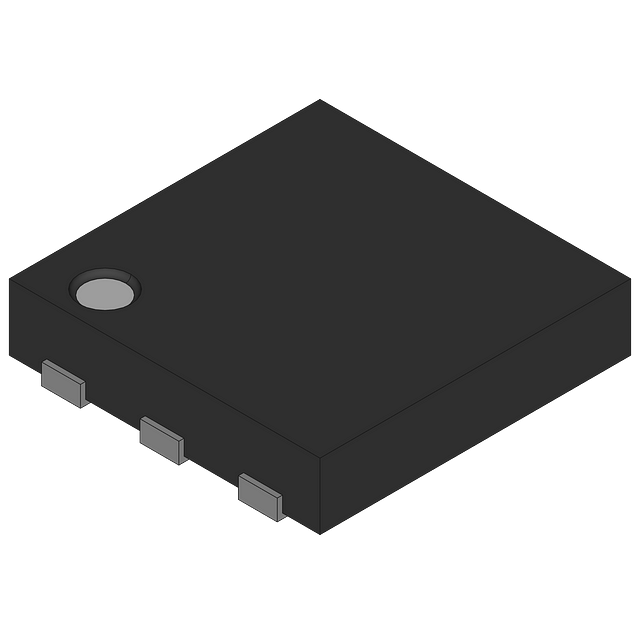

Product Images
