Technical Specifications
Onsemi NP3100SAT3G technical specifications.
General
| Capacitance | 31pF |
| Package/Case | SMB |
| Current Rating | 2.2A |
| Hold Current | 150mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 50A |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NP3100SAT3G Datasheet
Download the complete datasheet for Onsemi NP3100SAT3G to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

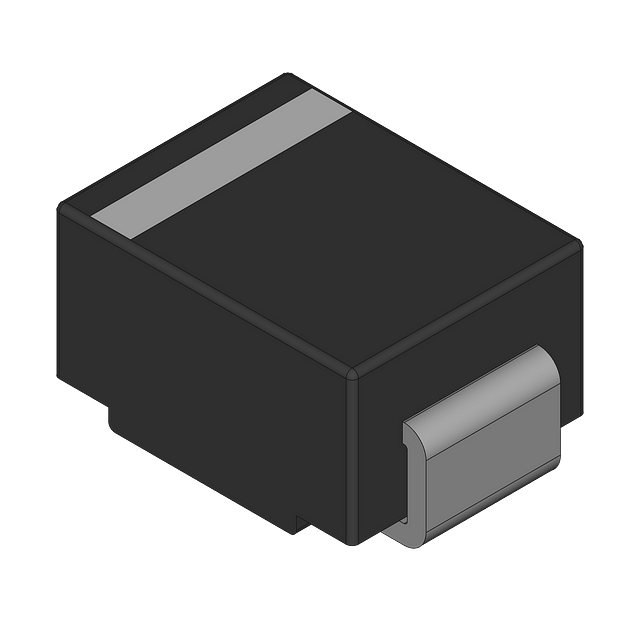

Product Images
