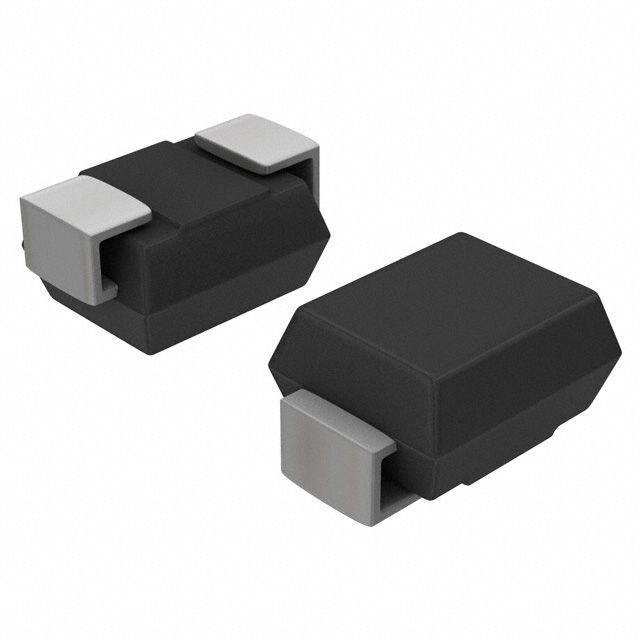

The NRBV360BT3G is a single diode with a maximum operating temperature range of -65°C to 175°C and a maximum reverse voltage of 60V. It has a maximum forward current of 4A and a maximum surge current of 125A. The diode is packaged in an SMB package and is compliant with AEC-Q101. It is available in quantities of 2500 per reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NRVBS360BT3G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi NRVBS360BT3G technical specifications.
| Average Rectified Current | 4A |
| Package/Case | SMB |
| Element Configuration | Single |
| Forward Current | 4A |
| Height | 2.09mm |
| Length | 4.6mm |
| Max Forward Surge Current (Ifsm) | 125A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 60V |
| Max Reverse Current | 3mA |
| Max Reverse Voltage (DC) | 60V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 125A |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Weight | 0.006349oz |
| Width | 3.95mm |
| RoHS | Compliant |
