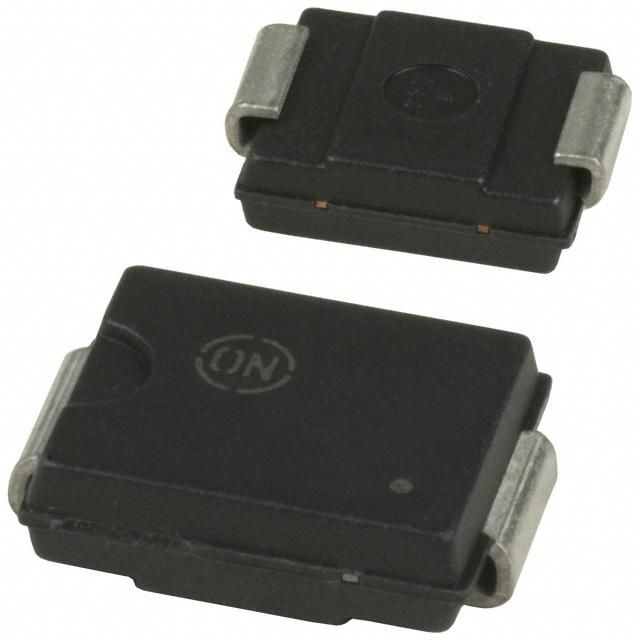

The NSI50350AST3G is a high-power diode from Onsemi, packaged in an SMC-2 case and rated for surface mount. It operates over a temperature range of -55°C to 175°C and can handle a maximum power dissipation of 3.11W. The diode has a maximum input voltage of 50V and an output current of 350mA. It is RoHS compliant and halogen free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NSI50350AST3G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMC |
| Halogen Free | Halogen Free |
| Height | 2.41mm |
| Lead Free | Lead Free |
| Length | 7.11mm |
| Max Input Voltage | 50V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 5.859W |
| Max Supply Voltage | 50V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Segments | 80 |
| Operating Frequency | 100 Hz to 100 kHz |
| Output Current | 350mA |
| Output Current per Channel | 350mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 3.11W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 6.1mm |
| RoHS | Compliant |
