Technical Specifications
Onsemi NSS40500UW3T2G technical specifications.
General
| Collector Base Voltage (VCBO) | -40V |
| Collector Emitter Breakdown Voltage | 40V |
| Collector Emitter Saturation Voltage | -310mV |
| Collector-emitter Voltage-Max | 260mV |
| Emitter Base Voltage (VEBO) | 7V |
| Gain Bandwidth Product | 100MHz |
| Halogen Free | Halogen Free |
| hFE Min | 250 |
| Lead Free | Lead Free |
| Max Collector Current | 5A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 875mW |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transition Frequency | 100MHz |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NSS40500UW3T2G Datasheet
Download the complete datasheet for Onsemi NSS40500UW3T2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

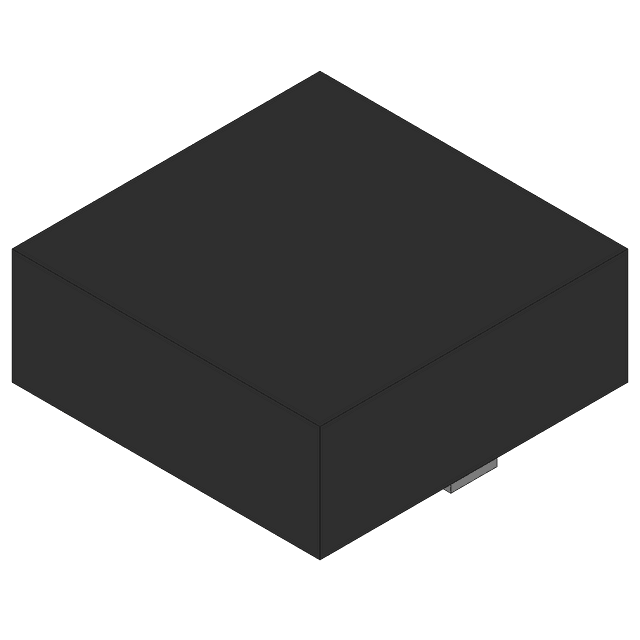

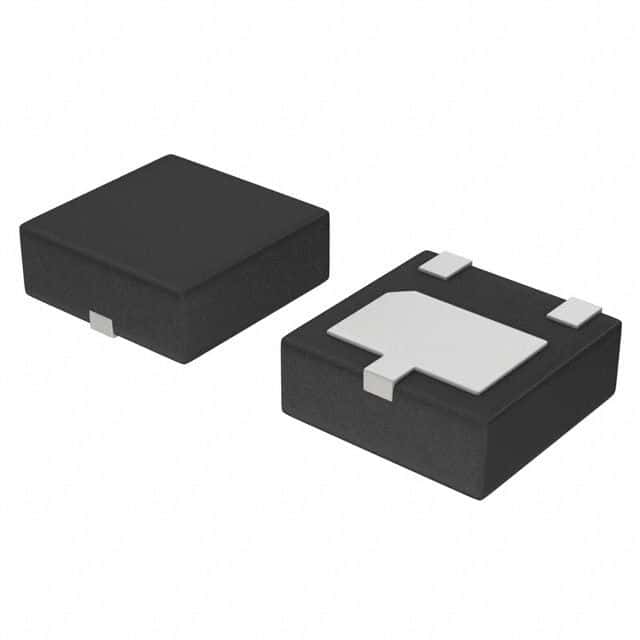

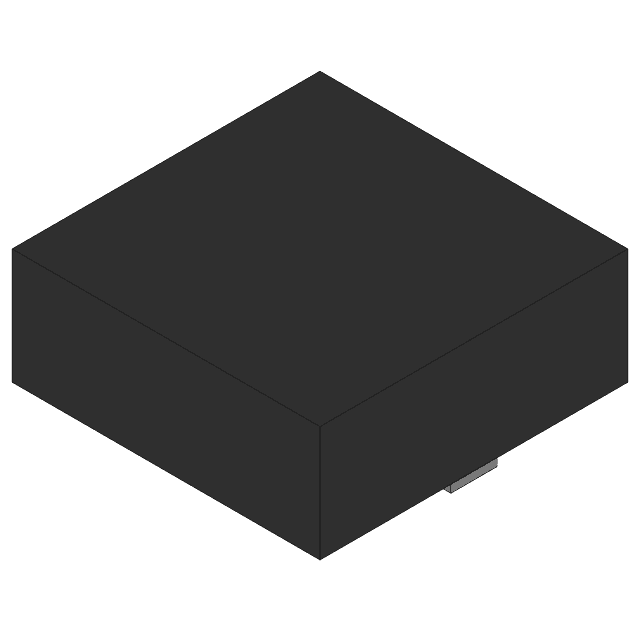

Product Images
