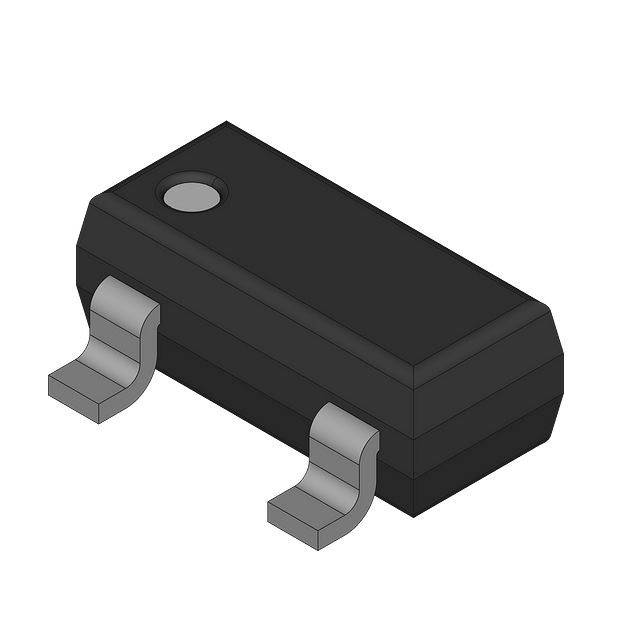

PNP Bipolar Junction Transistor (BJT) with a maximum collector current of 2A and a low collector-emitter saturation voltage of -135mV. Features a collector-base voltage (VCBO) of -40V and a maximum collector-emitter voltage of 170mV. Operates within a temperature range of -55°C to 150°C and boasts a transition frequency of 100MHz. Packaged in a SOT-23-3 (TO-236) surface-mount package, supplied on a 3000-piece tape and reel. This component is RoHS compliant and halogen-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NSV40200LT1G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-23-3 |
| Collector Base Voltage (VCBO) | -40V |
| Collector Emitter Breakdown Voltage | 40V |
| Collector Emitter Saturation Voltage | -135mV |
| Collector-emitter Voltage-Max | 170mV |
| Emitter Base Voltage (VEBO) | -7V |
| Gain Bandwidth Product | 100MHz |
| Halogen Free | Halogen Free |
| Height | 1.11mm |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Max Breakdown Voltage | 40V |
| Max Collector Current | 2A |
| Max Frequency | 100MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 460mW |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transition Frequency | 100MHz |
| Weight | 0.050717oz |
| Width | 2.64mm |
| RoHS | Compliant |
Download the complete datasheet for Onsemi NSV40200LT1G to view detailed technical specifications.
