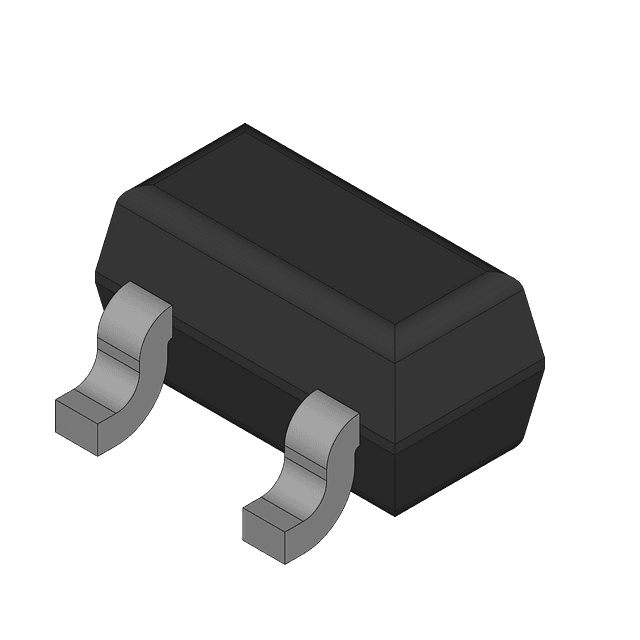

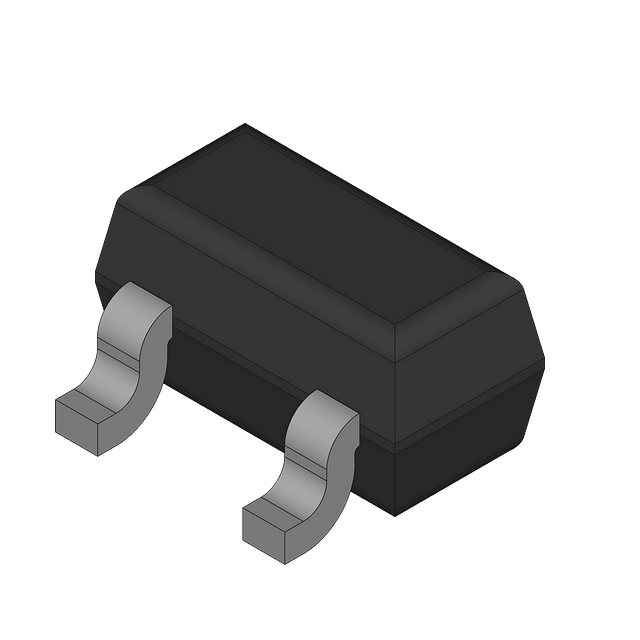

The NTA4151PT1 is a P-channel junction field-effect transistor with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It has a continuous drain current of 760mA and a drain to source breakdown voltage of -20V. The device features a drain to source resistance of 490mR and a gate to source voltage of 6V. It is packaged in a SC-75 package and is suitable for surface mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NTA4151PT1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi NTA4151PT1 technical specifications.
| Package/Case | SC |
| Continuous Drain Current (ID) | 760mA |
| Current Rating | -760mA |
| Drain to Source Breakdown Voltage | -20V |
| Drain to Source Resistance | 490mR |
| Drain to Source Voltage (Vdss) | 20V |
| Fall Time | 8.2ns |
| Gate to Source Voltage (Vgs) | 6V |
| Input Capacitance | 156pF |
| Lead Free | Contains Lead |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 301mW |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Power Dissipation | 301mW |
| Rds On Max | 360mR |
| RoHS Compliant | No |
| Turn-Off Delay Time | 29ns |
| DC Rated Voltage | -20V |
| RoHS | Not Compliant |
