The NTD15N06LT4 is a surface mount N-Channel MOSFET with a maximum operating temperature of 175°C and a minimum operating temperature of -55°C. It has a continuous drain current rating of 15A and a maximum power dissipation of 48W. The device has a drain to source voltage rating of 60V and an input capacitance of 440pF. It is not RoHS compliant and contains lead. The NTD15N06LT4 is packaged in a DPAK-3 package type.
PackageDPAK
Current Rating15A
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi NTD15N06LT4 technical specifications.
General
| Package/Case | DPAK |
| Continuous Drain Current (ID) | 15A |
| Current Rating | 15A |
| Drain to Source Voltage (Vdss) | 60V |
| Input Capacitance | 440pF |
| Lead Free | Contains Lead |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 48W |
| Mount | Surface Mount |
| Rds On Max | 100mR |
| RoHS Compliant | No |
| DC Rated Voltage | 60V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi NTD15N06LT4 Datasheet
Download the complete datasheet for Onsemi NTD15N06LT4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

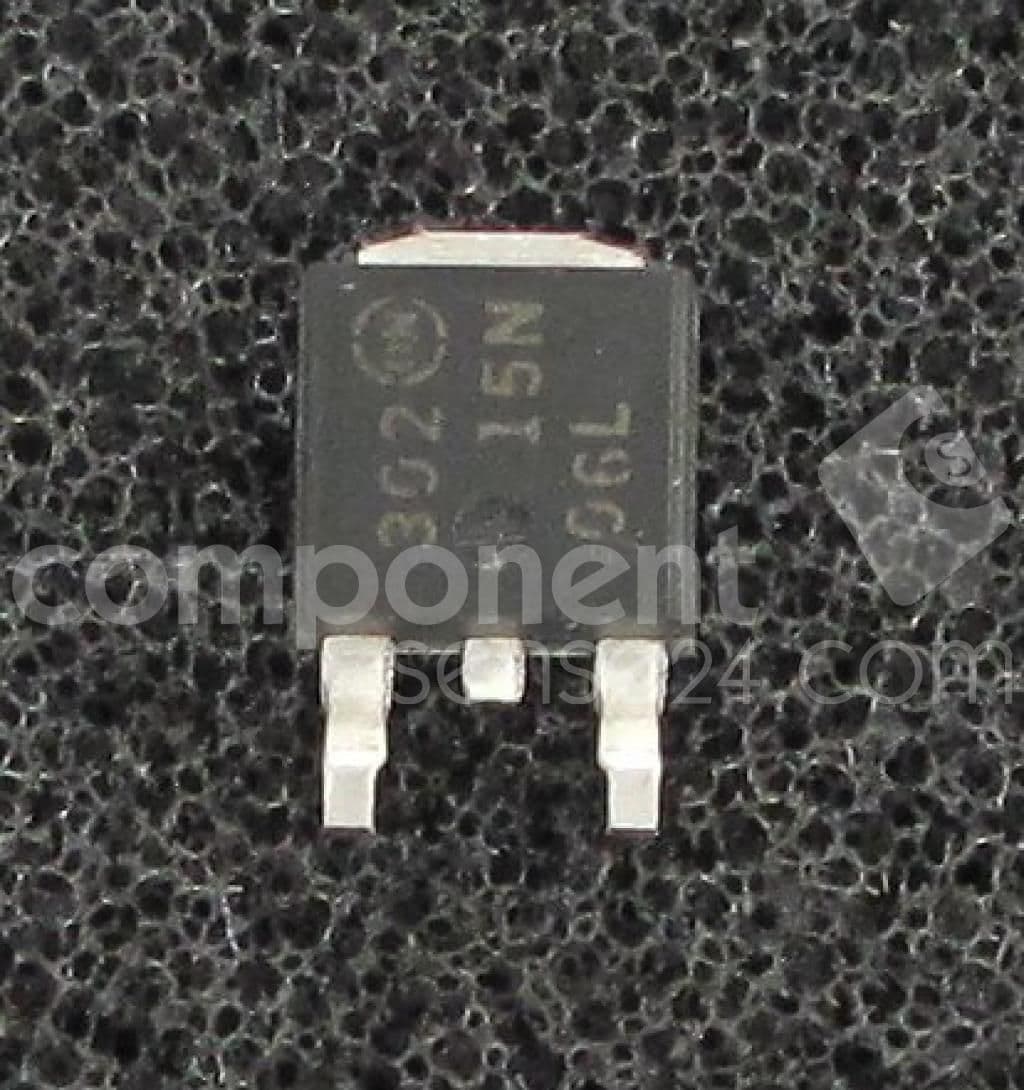

Product Images
