NTGS3446T1G

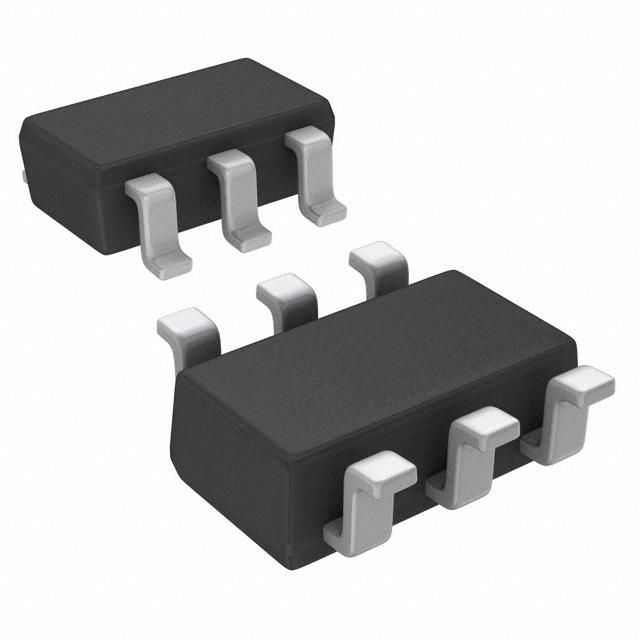

N-Ch Power MOSFET, 20V, 5.1A, 45mΩ, TSOP-6

Onsemi

NTGS3446T1G

Name: NTGS3446T1G Onsemi
Brand: Onsemi
SKU: NTGS3446T1G

N-Ch Power MOSFET, 20V, 5.1A, 45mΩ, TSOP-6

Single N-Channel Power MOSFET featuring a 20V Drain-Source Breakdown Voltage and 5.1A Continuous Drain Current. Offers a low Drain-Source On Resistance of 36mΩ at 10V Vgs. This component is housed in a TSOP package with a maximum power dissipation of 1W and operates within a temperature range of -55°C to 150°C. Includes fast switching characteristics with a Turn-On Delay Time of 9ns and Fall Time of 12ns.

PackageTSOP

Current Rating5.1A

PolarityN-CHANNEL

Power1W

Quick Jump:

Technical Specifications

Onsemi NTGS3446T1G technical specifications.

General

Package/Case	TSOP
Continuous Drain Current (ID)	5.1A
Current Rating	5.1A
Drain to Source Breakdown Voltage	20V
Drain to Source Resistance	36mR
Drain to Source Voltage (Vdss)	20V
Drain-source On Resistance-Max	36MR
Element Configuration	Single
Fall Time	12ns
Gate to Source Voltage (Vgs)	12V
Height	0.039inch
Input Capacitance	750pF
Lead Free	Lead Free
Length	0.122inch
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	500mW
Nominal Vgs	850mV
Number of Elements	1
Package Quantity	1
Packaging	Tape and Reel
Polarity	N-CHANNEL
Polarization	N
Power Dissipation	1W
Radiation Hardening	No
Rds On Max	45mR
Reach SVHC Compliant	No
RoHS Compliant	Yes
Threshold Voltage	850mV
Turn-Off Delay Time	35ns
Turn-On Delay Time	9ns
DC Rated Voltage	20V
Width	0.067inch
