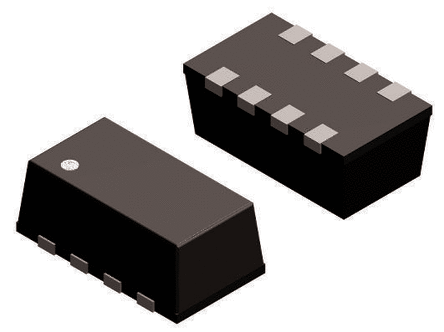

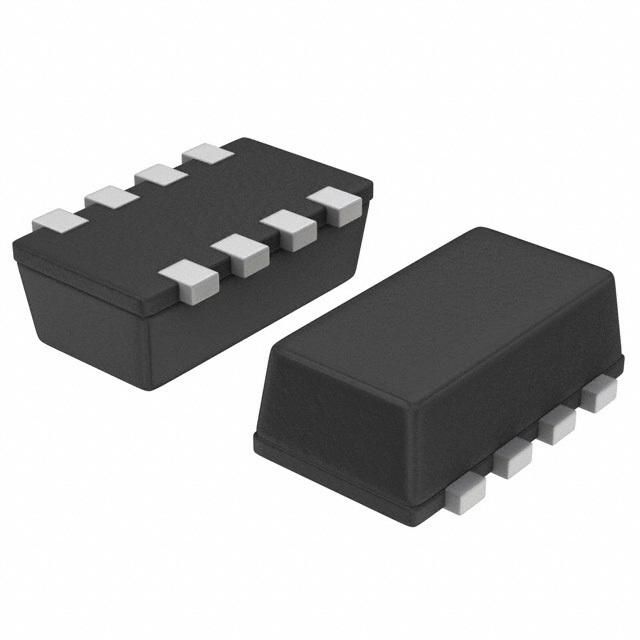

Complementary ChipFET™ Power MOSFET featuring N and P-channel FETs. Offers a 20V Drain to Source Voltage (Vdss) and a continuous drain current (ID) of 2.2A. Low on-resistance of 80mΩ (Rds On Max) at a nominal Vgs of 600mV. Packaged in a compact SMD/SMT format (3.1mm L x 1.7mm W x 1.1mm H) on a 3000-piece tape and reel. Operates across a wide temperature range from -55°C to 150°C with a maximum power dissipation of 1.1W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NTHC5513T1G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi NTHC5513T1G technical specifications.
| Package/Case | SMD/SMT |
| Continuous Drain Current (ID) | 2.2A |
| Current Rating | 3.1A |
| Drain to Source Breakdown Voltage | -20V |
| Drain to Source Resistance | 130mR |
| Drain to Source Voltage (Vdss) | 20V |
| Element Configuration | Dual |
| FET Type | N and P-Channel |
| Gate to Source Voltage (Vgs) | 12V |
| Height | 1.1mm |
| Input Capacitance | 180pF |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.1W |
| Nominal Vgs | 600mV |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Power Dissipation | 1.1W |
| Radiation Hardening | No |
| Rds On Max | 80mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 600mV |
| Turn-Off Delay Time | 33ns |
| Turn-On Delay Time | 7ns |
| DC Rated Voltage | 20V |
| Width | 1.7mm |
| RoHS | Compliant |
