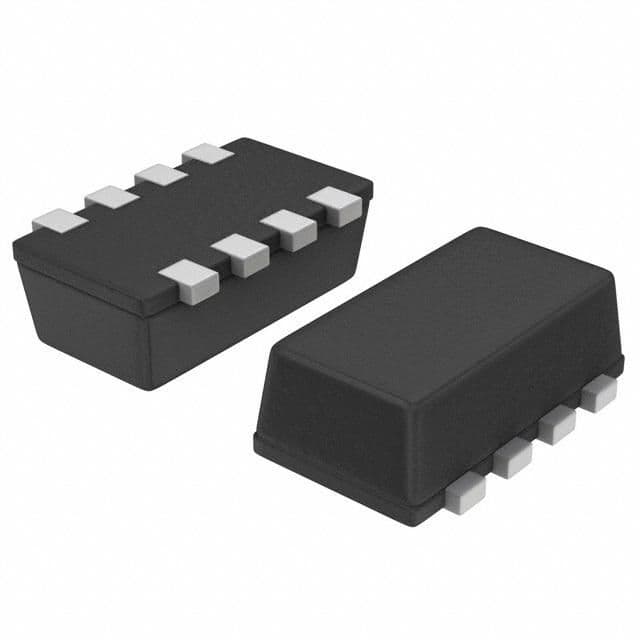

P-Channel Power MOSFET with integrated Schottky diode, featuring a -20V drain-source breakdown voltage and a continuous drain current of 3.2A. Offers a low drain-source on-resistance of 64mΩ at a nominal Vgs of -450mV. This SMD/SMT component operates within a temperature range of -55°C to 150°C and has a maximum power dissipation of 1.1W. Packaged in tape and reel, it is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NTHD3101FT1G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi NTHD3101FT1G technical specifications.
| Package/Case | SMD/SMT |
| Continuous Drain Current (ID) | 3.2A |
| Current Rating | -3.2A |
| Drain to Source Breakdown Voltage | -20V |
| Drain to Source Resistance | 64mR |
| Drain to Source Voltage (Vdss) | 20V |
| Drain-source On Resistance-Max | 64MR |
| Fall Time | 12.4ns |
| Gate to Source Voltage (Vgs) | 8V |
| Height | 1.05mm |
| Input Capacitance | 680pF |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.1W |
| Nominal Vgs | -450mV |
| Number of Elements | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Power Dissipation | 1.1W |
| Radiation Hardening | No |
| Rds On Max | 80mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | -1.5V |
| Turn-Off Delay Time | 16ns |
| Turn-On Delay Time | 5.8ns |
| DC Rated Voltage | -20V |
| Width | 1.65mm |
| RoHS | Compliant |
