Technical Specifications
Onsemi NTMD4N03R2 technical specifications.
General
| Continuous Drain Current (ID) | 4A |
| Current Rating | 4A |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 48mR |
| Fall Time | 10ns |
| Gate to Source Voltage (Vgs) | 20V |
| Lead Free | Contains Lead |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 2W |
| RoHS Compliant | No |
| Turn-Off Delay Time | 16ns |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi NTMD4N03R2 Datasheet
Download the complete datasheet for Onsemi NTMD4N03R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

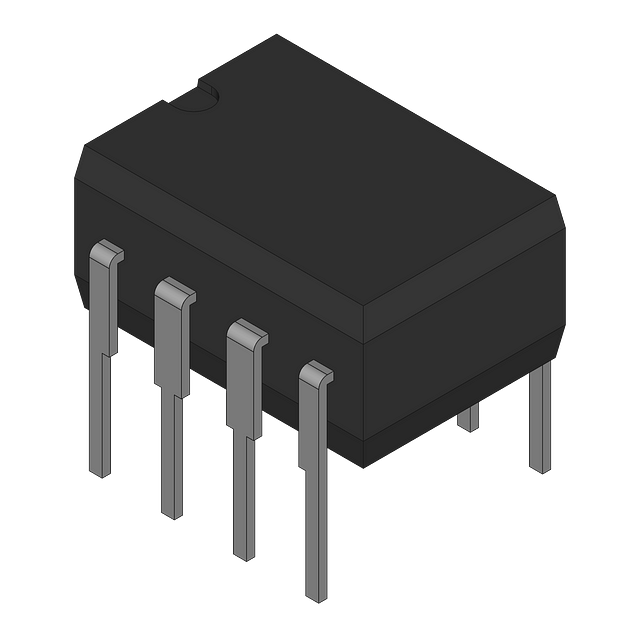

Product Images
