Onsemi
NTMFS4837NT1G
Power MOSFET 30V 75A 5 mOhm Single N-Channel SO-8FL, DFN5 5X6, 1.27P (SO 8FL), 1500-REEL
PackageDFN
MountingSurface Mount
PolarityN-CHANNEL
Power2.2W
Quick Jump:
Technical Specifications
Onsemi NTMFS4837NT1G technical specifications.
General
| Package/Case | DFN |
| Continuous Drain Current (ID) | 74A |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 5mR |
| Drain to Source Voltage (Vdss) | 30V |
| Fall Time | 10ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 2.048nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 47.2W |
| Mount | Surface Mount |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 2.2W |
| Rds On Max | 5mR |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 19ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NTMFS4837NT1G Datasheet
Download the complete datasheet for Onsemi NTMFS4837NT1G to view detailed technical specifications.
No datasheet is available for this part.

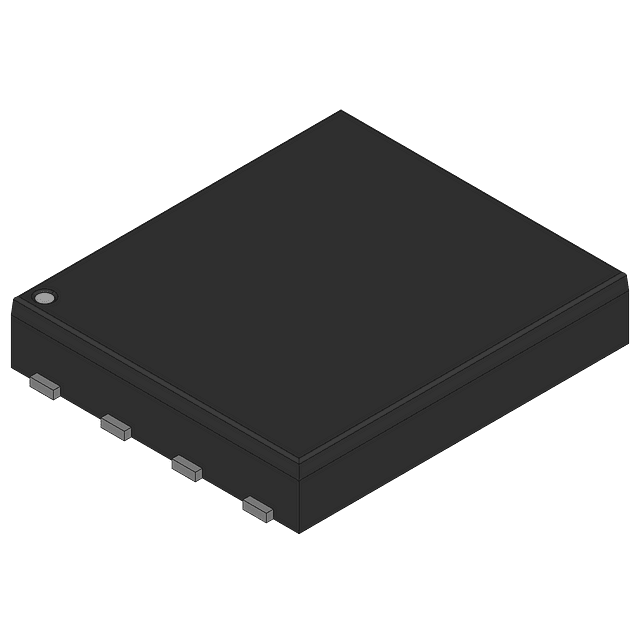

Product Images
