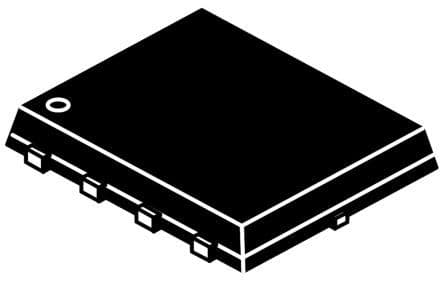

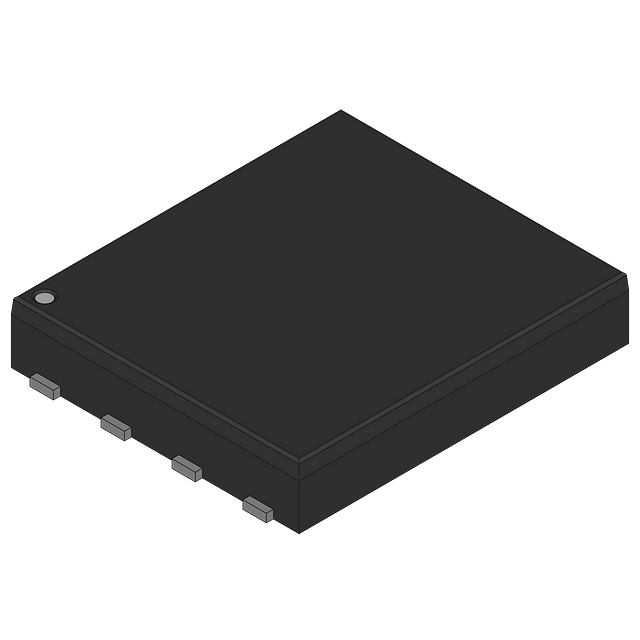

Single N-Channel Power MOSFET featuring 30V drain-source voltage and 46A continuous drain current. Offers low on-resistance of 5.8mΩ (typical) and 6.95mΩ (max) at 10Vgs. Designed with a DFN 5x6 package, 1.05mm height, and 1.27mm pitch, suitable for tape and reel packaging. Key electrical characteristics include a 2.2V threshold voltage and 987pF input capacitance. Operates across a wide temperature range from -55°C to 150°C with a maximum power dissipation of 23.6W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NTMFS4C10NT1G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi NTMFS4C10NT1G technical specifications.
| Package/Case | DFN |
| Continuous Drain Current (ID) | 46A |
| Drain to Source Resistance | 5.8mR |
| Drain to Source Voltage (Vdss) | 30V |
| Element Configuration | Single |
| Fall Time | 7ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.05mm |
| Input Capacitance | 987pF |
| Lead Free | Lead Free |
| Length | 6.1mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 23.6W |
| Number of Channels | 1 |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Rds On Max | 6.95mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 2.2V |
| Turn-Off Delay Time | 14ns |
| Turn-On Delay Time | 9ns |
| Width | 5.1mm |
| RoHS | Compliant |
