Single N-Channel Power MOSFET featuring 60V drain-source voltage and 1.2mΩ drain-source resistance. This surface-mount device offers a continuous drain current of 276A and a maximum power dissipation of 167W. It operates within a temperature range of -55°C to 150°C and includes fast switching characteristics with turn-on delay of 21.8ns and fall time of 81.3ns. The component is housed in a DFN 5x6 package and is RoHS compliant.
PackageDFN
MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Onsemi NTMFS5C604NLT1G technical specifications.
General
| Package/Case | DFN |
| Continuous Drain Current (ID) | 276A |
| Drain to Source Resistance | 1.2mR |
| Drain to Source Voltage (Vdss) | 60V |
| Fall Time | 81.3ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1mm |
| Input Capacitance | 8.9nF |
| Lead Free | Lead Free |
| Length | 5.9mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 167W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Rds On Max | 1.2mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 2V |
| Turn-Off Delay Time | 57.8ns |
| Turn-On Delay Time | 21.8ns |
| Width | 4.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NTMFS5C604NLT1G Datasheet
Download the complete datasheet for Onsemi NTMFS5C604NLT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

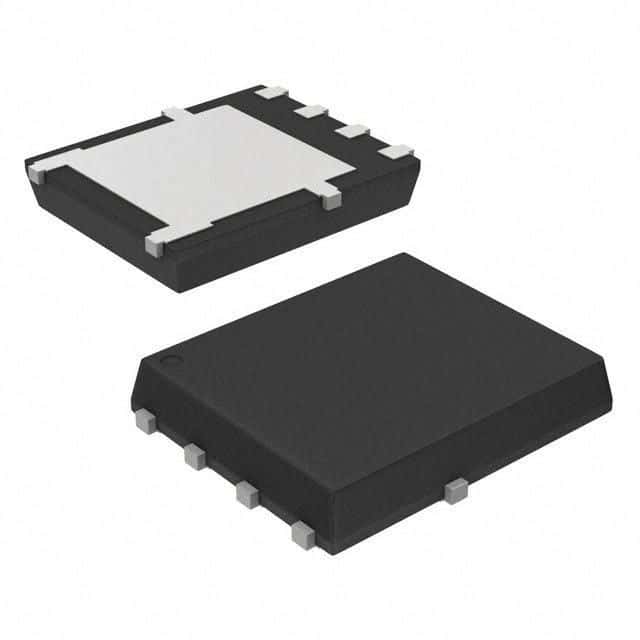

Product Images
