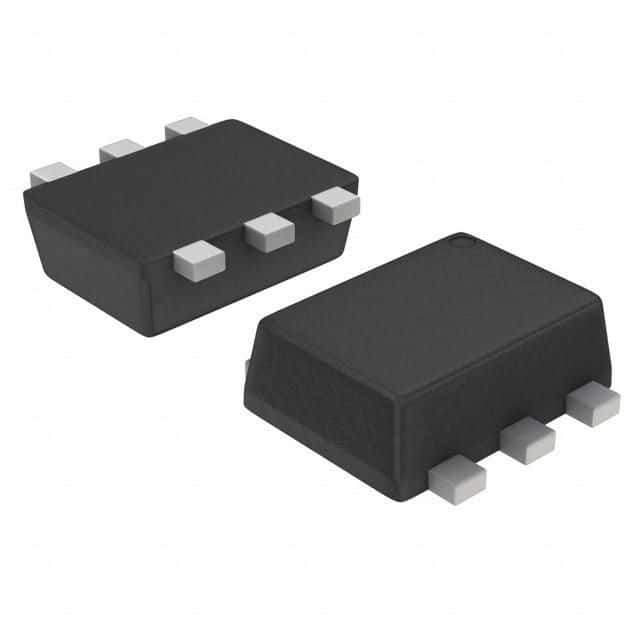

Single P-Channel MOSFET for small signal applications. Features a -20V drain-source breakdown voltage and a continuous drain current of 860mA. Offers a maximum drain-source on-resistance of 150mΩ. Housed in a compact SOT-563 package with a 1.3mm width, 1.7mm length, and 0.6mm height. Operates across a temperature range of -55°C to 150°C with a maximum power dissipation of 170mW. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NTZS3151PT1G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi NTZS3151PT1G technical specifications.
| Package/Case | SOT-563 |
| Continuous Drain Current (ID) | 860mA |
| Current Rating | -950mA |
| Drain to Source Breakdown Voltage | -20V |
| Drain to Source Resistance | 195mR |
| Drain to Source Voltage (Vdss) | 20V |
| Drain-source On Resistance-Max | 150mR |
| Element Configuration | Single |
| Fall Time | 12ns |
| Gate to Source Voltage (Vgs) | 8V |
| Height | 0.6mm |
| Input Capacitance | 458pF |
| Lead Free | Lead Free |
| Length | 1.7mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 170mW |
| Nominal Vgs | -1V |
| Number of Elements | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Power Dissipation | 170mW |
| Radiation Hardening | No |
| Rds On Max | 150mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | -1V |
| Turn-Off Delay Time | 23.7ns |
| Turn-On Delay Time | 5ns |
| DC Rated Voltage | -20V |
| Width | 1.3mm |
| RoHS | Compliant |
