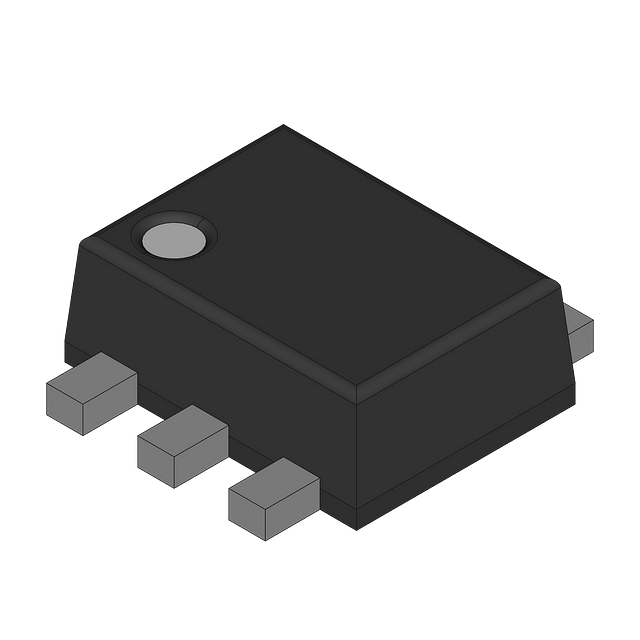

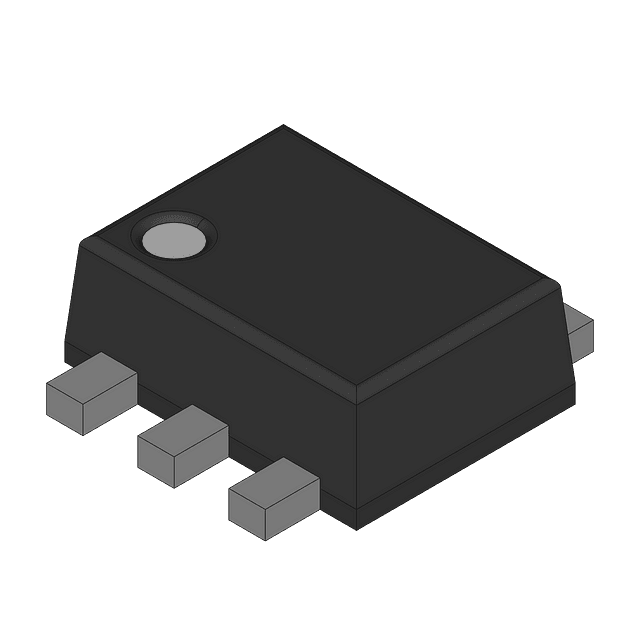

The NTZS3151PT1H is a P-channel junction field-effect transistor with a maximum operating temperature range of -55°C to 150°C. It features an input capacitance of 458pF and a drain to source resistance of 150mR. The device is packaged in a SOT-563 package and is available in quantities of 4000 per reel. The NTZS3151PT1H is RoHS compliant and has a maximum power dissipation of 170mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NTZS3151PT1H datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi NTZS3151PT1H technical specifications.
| Package/Case | SOT-563 |
| Continuous Drain Current (ID) | 860mA |
| Drain to Source Resistance | 150mR |
| Drain to Source Voltage (Vdss) | 20V |
| Element Configuration | Single |
| Fall Time | 18ns |
| Gate to Source Voltage (Vgs) | 8V |
| Input Capacitance | 458pF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 170mW |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Radiation Hardening | No |
| Rds On Max | 150mR |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 23.7ns |
| Turn-On Delay Time | 5ns |
| RoHS | Compliant |
