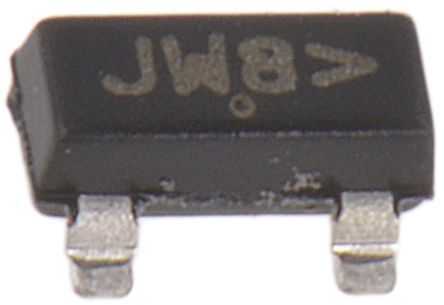

N-channel MOSFET motor driver in a 3-pin SOT-23 package, designed for surface mounting. Features a 60V drain-source breakdown voltage and a maximum continuous drain current of 150mA. Offers a low on-state resistance of 1.8 Ohms (typical) and a maximum of 2.4 Ohms. Operates with a gate-source voltage up to 12V and provides a 60V maximum supply voltage. This RoHS compliant component has a fall time of 600ns and a power dissipation of 225mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NUD3160LT1G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi NUD3160LT1G technical specifications.
| Package/Case | SOT-23-3 |
| Continuous Drain Current (ID) | 150mA |
| Drain to Source Breakdown Voltage | 60V |
| Drain to Source Resistance | 1.8R |
| Drain to Source Voltage (Vdss) | 60V |
| Fall Time | 600ns |
| Gate to Source Voltage (Vgs) | 12V |
| Halogen Free | Halogen Free |
| Height | 1.01mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Max Supply Voltage | 60V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| On-state Resistance-Max | 2.4R |
| Output Configuration | Low Side |
| Output Current | 200mA |
| Output Voltage | 61V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 225mW |
| Radiation Hardening | No |
| Rated Current-Max | 200mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MicroIntegration™ |
| Width | 1.4mm |
| RoHS | Compliant |
