4-channel EMI/RFI filter with integrated ESD protection, featuring 200 Ohm resistance and 15pF capacitance per channel. Offers 35dB attenuation at 125MHz, operating across 900 to 2400 MHz. Housed in a compact 2x2mm DFN8 package, this halogen-free and lead-free component is RoHS compliant, suitable for operation between -40°C and 85°C.
Frequency900 to 2400 MHz
PackageDFN
Capacitance15pF
Resistance200R
Quick Jump:
Technical Specifications
Onsemi NUF4401MNT1G technical specifications.
General
| Attenuation Value | 35dB |
| Capacitance | 15pF |
| Package/Case | DFN |
| Circuit Type | Filter |
| Depth | 2mm |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max DC Current | 100nA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Channels | 4 |
| Number of Elements | 8 |
| Number of Lines | 4 |
| Operating Frequency | 900 to 2400 MHz |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 200R |
| RoHS Compliant | Yes |
| Series | NUF4401MN |
| Shielding | Unshielded |
| Termination | Flat |
| Test Frequency | 125MHz |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NUF4401MNT1G Datasheet
Download the complete datasheet for Onsemi NUF4401MNT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

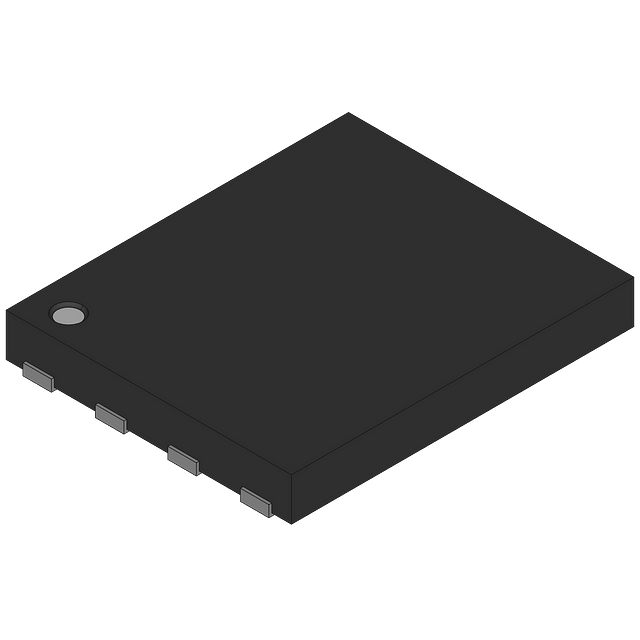

Product Images
