Technical Specifications
Onsemi NUP2301MW6T1 technical specifications.
General
| Capacitance | 3pF |
| Package/Case | SOT-363 |
| Depth | 1.25mm |
| Direction | Unidirectional |
| Lead Free | Contains Lead |
| Leakage Current | 2.5uA |
| Length | 2mm |
| Min Breakdown Voltage | 70V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Current | 2.5uA |
| Max Surge Current | 2A |
| Mount | Surface Mount |
| Number of Unidirectional Channels | 2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 70V |
| Reverse Voltage | 70V |
| RoHS Compliant | No |
| DC Rated Voltage | 6V |
| Working Voltage | 70V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Onsemi NUP2301MW6T1 Datasheet
Download the complete datasheet for Onsemi NUP2301MW6T1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

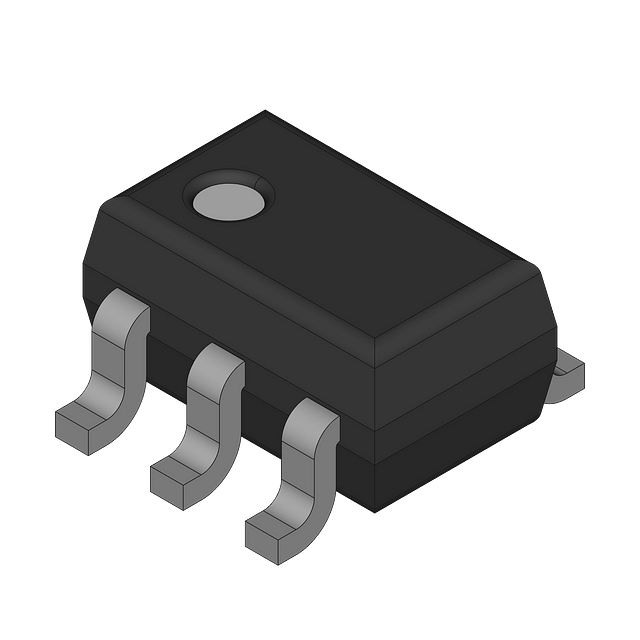

Product Images
