This unidirectional transient voltage suppressor (TVS) array offers robust ESD protection for four lines with a low 0.6pF capacitance. Featuring a 5.5V reverse standoff voltage and 10V clamping voltage, it is designed for 3.3V operating supply voltage. The component is housed in a compact SC package (SC-88/SC70-6/SOT-363) with SMD/SMT termination, suitable for tape and reel packaging. It operates across a wide temperature range of -40°C to 125°C and boasts a peak pulse current rating of 8A. This device is RoHS and Halogen Free compliant.
PackageSC
Capacitance0.6pF
Voltage Rating5.5V
Quick Jump:
Technical Specifications
Onsemi NUP4114UCLW1T2G technical specifications.
General
| Capacitance | 0.6pF |
| Package/Case | SC |
| Clamping Voltage | 10V |
| Depth | 1.25mm |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 1mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 2mm |
| Min Breakdown Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Reverse Leakage Current | 1uA |
| Number of Channels | 4 |
| Number of Lines | 4 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 8A |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 5.5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 1.35mm |
| Working Voltage | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NUP4114UCLW1T2G Datasheet
Download the complete datasheet for Onsemi NUP4114UCLW1T2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

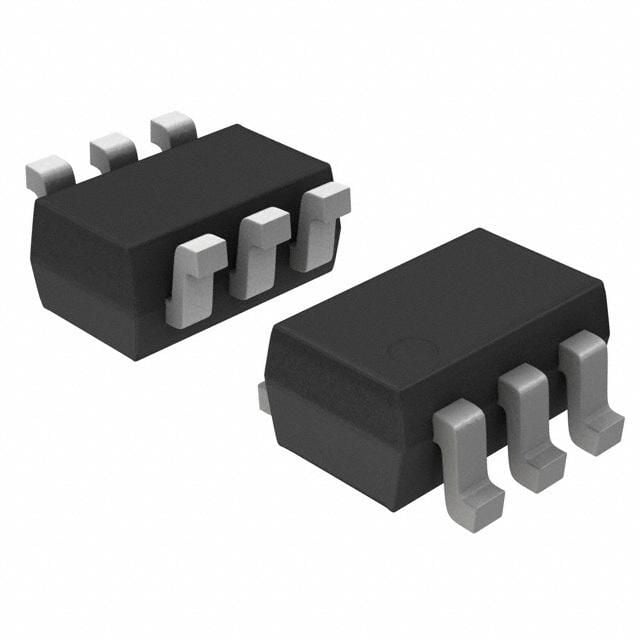

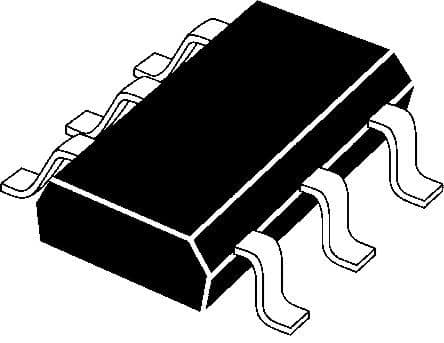

Product Images
